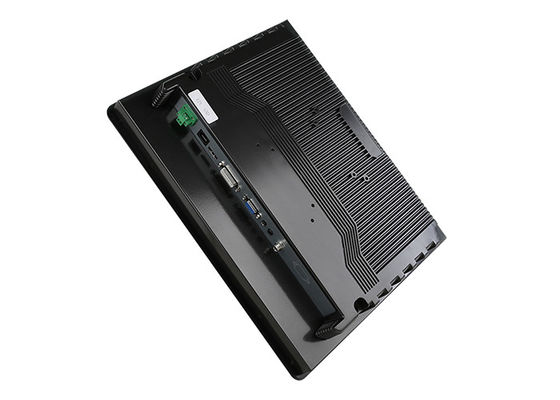

1024x768 IP65 Waterproof Capacitive Touch Monitor 12-24V
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Embedded Industrial Monitor | Color | Balck |
|---|---|---|---|
| Material | Aluminum Alloy | Resolution | 1024*768 |
| View Angle | 80°/80°/80°/80° (R/L/U/D) | Signal Ports | VGA/ DVI/ HDMI |
| Brightness | 300 Cd/m2 | IP Grade | Front Panel IP65 Waterproof |
| Working Voltage | AC 100 - 240V , 50-60Hz | ||
| High Light | IP65 Waterproof Capacitive Touch Monitor,1024x768 Capacitive Touch Monitor,24V Waterproof Industrial Computer Monitor |
||
Product Description
Feature
1. Fully enclosed design, the whole monitor is dustproof.
2. Seamless design flat bezel, front panel IP65 waterproof.
3. Aluminum alloy shell, good mechanical properties, excellent heat dissipation.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. High performance mainboard, 7x24 continuous operation.
6. VGA+HDMI+DVI interfaces, USB for touch.
7. 12-24V wide voltage support.
8. EMI/ EMC standard Anti-electromagnetic interference.
9. Shock proof standard: GB2423. anti-static: 4KV-8KV. Anti surge.
10. With waterproof rubber seal on the back side.
11. Support wall mounting, desk stand, embedded mounting.
Specification
| Brand | Sihovision |
| Model | SL15 |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch optional) |
| Signal Ports | |
| VGA | 1x VGA |
| DVI | 1x DVI |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, etc. |
| Power Supply | |
| External Power Supply | AC 100-240V, 50-60Hz |
| Working voltage | DC 12-24V |
| Power consumption | ≤16W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, Storage: -20 to 70°C |
| Relative humidity | Operating: 10% to 80%, Storage: 5% to 90% |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 5kg |
| Product Dimension | 36.61*29*6.8cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws, user manual, warranty card |
| Other | |
| Mounting | Embedded mounting screws |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
About us
Shenzhen Shinho Electronic Technology Co., Ltd is a leading provider of visual and interactive application solutions. Our main products include lcd touchscreen monitor , open frame lcd monitor , waterproof high brightness monitor , industrial panel PC , embedded touch panel PC, full IP65 panel PC , industrial tablet PC, self service KIOSK, advertising display etc. We provide our products and services on a worldwide basis, our products are widely used in Automation, SCADA , KIOSK , ATM, POS , Transportation, Medical, Gaming , Oil Gas & Energy , Military etc.
Application
Shopping Mall, Super Market, Smart home, Metro station, Compang, Hospital, Airport, Restaurant, Automobile 4S stores, Automatic pay station machine, Packaging testing equipment, Parking lot self-service payment machine.
