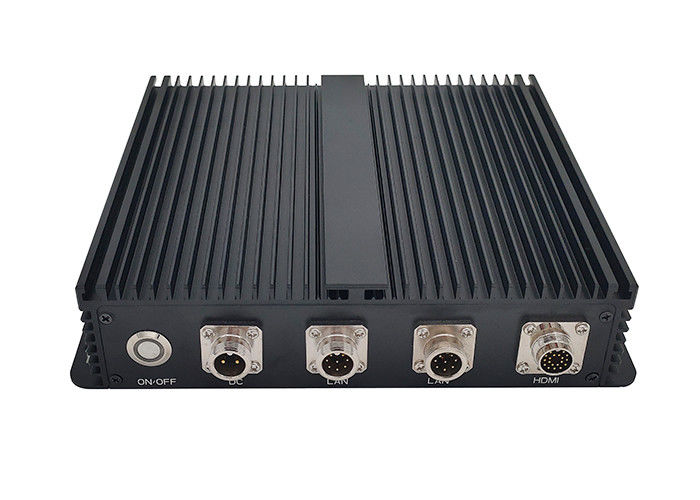

I3 6100U IP65 Mini PC

Brand Name: Sihovision
Model Number: BOXPC-623W
MOQ: 1 Piece
Price: negotiable
Payment Terms: T/T , Paypl , L/C , D/A , D/P , Western Union ,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, RoHS, FCC
Name:
Full IP65 Mini Pc
CPU:
Intel® Core I7-6500U
RAM:
8 GB
Hard Disk:
256G SSD
Material:
Aluminum Alloy
Temp:
-10℃～60℃
Weight:
5kg
Dimension:
214*204*52mm
Highlight:

I3 6100U 8G Mini Pc

,

256G SSD Full IP65 Mini Pc

,

Aluminum Alloy Full IP65 Mini Pc

Product Description

I3 6100U 8G Memory 256G SSD 4*USB 3*COM Wide Operating Temperature Full IP65 Mini Pc



Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.

Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.


Features
1. Full Aluminum alloy enclosure, compact, low weight design, excellent heat dissipation.
2. Sealed construction full IP65 waterproof , fanless design, noiseless, low-power consumption design.
3. Suitable for harsh operating environment , dustproof, anti-corrosion, shockproof, anti-vibration.
4. High performance motherboard, 7x24 continuous operation
5. Wide operating temperature support (-10°C~60°C)
6. With high electromagnetic compatibility and anti-interference capacity.
7. Expanded displays for Multi-task . Auto boot, remote wakening support.


Specification


Model: BOXPC-623W
PC
CPU Intel® Core I7-6500U ,dual core,2.5GHz,Fanless
Chipset Intel® Skylake-U series SOC
Memory 8G DDR3 (2G,4G,optional)
Hard Drive Capacity 256G SSD (32G,64G,128GB SSD optional)
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Network 2×Realtek RTL 8111E Gigabit Ethernet controller
Front I/O Ports 4*USB, 2*RJ45, 1*DC in,1*Power Button
Rear I/O Ports 3*COM, 1*HDMI, 1*VGA
Resolution support above 800*600
Hd support 1080P
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 24V
Power consumption ≤30W
Enclosure
Material Aluminum Alloy
Color Black, Silver , white, color can be customized
Operating Environment
Temperature Range operating: -10 to 60°C, storage : -20 to 70°C
Relative humidity 20%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 2.5kg
Gross weight 5kg
Product Dimension 21.4*20.4*5.2cm
Packing size 43*38*19mm
Accessories Power adapter, full IP65 waterproof cable sets
Other
Mounting (options) Built-in mounting bracket
wall/desking mounting brackets (optional)
Warranty 1 year warranty


I3 6100U IP65 Mini PCI3 6100U IP65 Mini PCI3 6100U IP65 Mini PCI3 6100U IP65 Mini PCI3 6100U IP65 Mini PCI3 6100U IP65 Mini PC

Rugged PCs ideal for applications like



manufacturing



industrial automation



medical, semiconductor



food processing



machine control



other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
