24 Inch Industrial Touch Screen Monitor Waterproof 1500nits High Brightness Monitor

Brand Name:	Sihovision
Model Number:	SL24
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS

Product Name:

High Brightness Touch Monitor

Panel Size:

24 Inch

Resolution:

1920*1080

Aspect Ratio:

16:9

Contrast Ratio:

5000:1

Luminance:

1500cd/m2

Signal Ports:

1x DP, 1x VGA, 1x DVI, 1x HDMI

Power:

DC 9~36V

Highlight:

Waterproof Industrial Touch Screen Monitor

1500nits High Brightness Monitor

Product Description

24 inch Industrial Touch Screen Monitor 1500nits High Brightness with Amphenol Ports and Waterproof Performance

Features

1. Narrow bezel design, aluminum alloy frame sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1500 brightness visible under sunlight, OSD button to adjust brightness
3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. Play the customer-specified LOGO when turning on the computer
5. Rear aviation power test backup interface, supports 9-36VDC input
6. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)

Specification

LCD panel

Panel size	24"
Display active area	531.36(W)x298.89(H) mm / 20.92x11.767 in
Resolution	1920*1080
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1500 nits, sunlight readable
Contrast ratio	5000:1
View angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	Anti glare (chemical etching)
Luminousness	≥85%
Touch controller IC	EETI 80
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Air Bonding
Touch options	(5 wires restive touch, IR touch optional)

I/O Ports

Video input	1x DP, 1x VGA, 1x DVI, 1x HDMI
Audio in/out	1x 3.5mm Line-out, 1×3.5mm Line-in(2 x 2W Speakers)
Touch	1x USB
Power connector	1x 12V DC jack, 1x 3-pins terminal block connector (9-36V), 1*4PIN aviation power interface 9-36VDC
Working voltage	DC 9~36V
Power consumption	55W
Power adapter	AC 100 ~ 240V input and DC +12V@5A MAX output, 60W

Enclosure

Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
Finish	Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Black+Silver
Mounting	VESA mount 75*75mm, Panel mount
IP rating	Front panel IP65
Cooling system	Passive - Fanless

Operating Environment

Temperature Range	Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F)
Relative humidity	Up to 90% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B

Other

Weight	Net weight 7.9kg Gross weight 10kg
Product Dimension	576.9345.954mm
Packing info	1pcs/ctn 711852cm/10kg 2pcs/ctn 713452cm/20kg
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws, wall mounting brackets
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Product picture

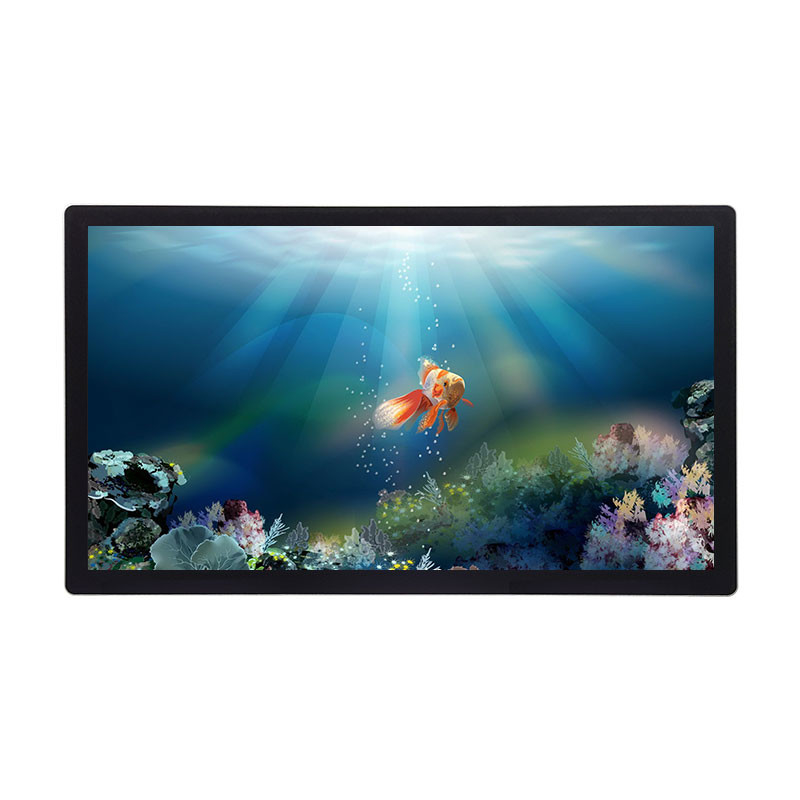

24 Inch Industrial Touch Screen Monitor Waterproof 1500nits High Brightness Monitor 0

Applications

Restaurant

Self-service kiosk

Gas station

Payment terminal machine

Vehicle

Bus stop
