Place of Origin:
Shenzhen , China
Brand Name:
Sihovision
Certification:
CE,FCC,RoHS
Model Number:
SC12W

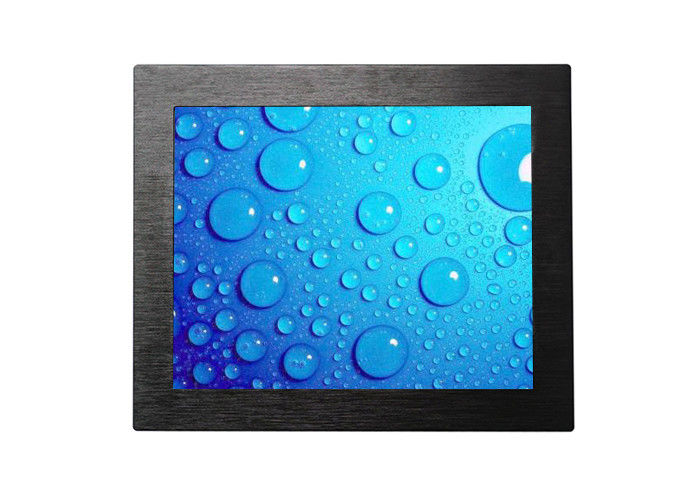

Wall Mount 12 Inch I5 CPU Full IP65 Waterproof Touch Panel PC
Features
1. Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.
2. Industrial LCD panel, wide viewing angle, 80°/80°/80°/80° (R/L/U/D) ,high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. Working voltage:12V (9-36V wide voltage optional).
5. High performance industrial motherboard, 7x24 continuous operation.
6. Full sealed and fanless design, full IP65 waterproof ,1000 nits high brightness, sunlight readable.
7. Wide Operating Temperature: -10C to +60°C.
8. Screw-on Water-tight IO Cables Included.
12'' Full IP65 Waterproof Touch Panel PC Applications
tennis courts
yatch
marine navigation
apartment buildings
truck
yacht.
process control systems
and so on.
Advantages
1. I5 CPU,fanless design,noiseless.
2. -10C to +60°C Wide temperature support.
3. High resolution:1024*768
4. Various Interfaces,4 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, HDMI also can be customized.
5. Sealed I/O with cable set included
6.Accept customization,No MOQ required.
Specification
| Model:SC12W | |
| PC | |
| CPU | Intel® core I5-4570T, 2.9GHz, dual core, fanless |
| Chipset | Intel Q87 |
| Memory | 2G DDR3, (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 4 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 point capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-36V wide voltage optional) |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
| Color | Black( white, Silver , color can be customized ) |
| VESA mounting | 100×100mm |
| IP-grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 5.5KG |
| Gross weight | 7KG |
| Product Dimension | 30.36×22.77×5.7cm |
| Packing size | 43×39×19 cm |
| Accessories | Power adapter,waterproof VGA/RS232/LAN/USB cable,touch driver,touch pen |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Drawing
