6 Sided Sealed Fanless Industrial PC High Brightness Outdoor Waterproof Computer

6 Sided Sealed Fanless Industrial PC High Brightness Outdoor Waterproof Computer

waterproof panel pc

ip65 touch screen pc

Place of Origin:

Shenzhen , China

Brand Name:

Sihovision

Certification:

CE,FCC,RoHS

Model Number:

SC17W

Contact Us
Request A Quote
Product Details
Size:
17 Inch
CPU:
Intel® Celeron J1900, 2.0GHz, Quad Core, Fanless
RAM:
8 G
Hard Disk:
64G
IP Grade:
6-sided Sealed IP65
Brightness:
1000cd/m² , Sunlight Readable
Material:
Aluminum Alloy Front Bezel + High Strength Cold Rolled Steel Back Case
Working Voltage:
9-24V Wide Voltage
Highlight:

waterproof panel pc

,

ip65 touch screen pc

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
negotiable
Payment Terms
T/T , Paypl , L/C , D/A , D/P , Western Union , MoneyGram
Product Description

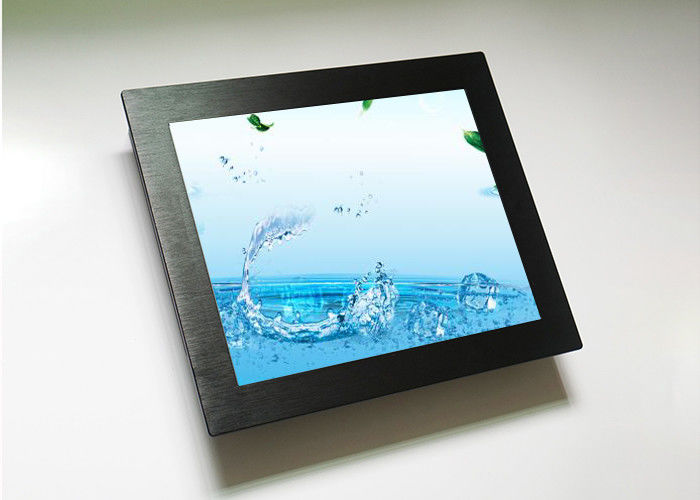

6-sided Sealed Fanless High Brightness 17" Outdoor Waterproof Computer


Features



1. 17" LCD, 1280 x 1024 Resolution


2. 5-Wire Resistive Touch Screen


3. Intel J1900 ,fanless CPU



4. full IP65 waterproof and dustproof


5. High performance industrial motherboard, 7x24 continuous operation.


6. 1000 nits high brightness,sunlight readable

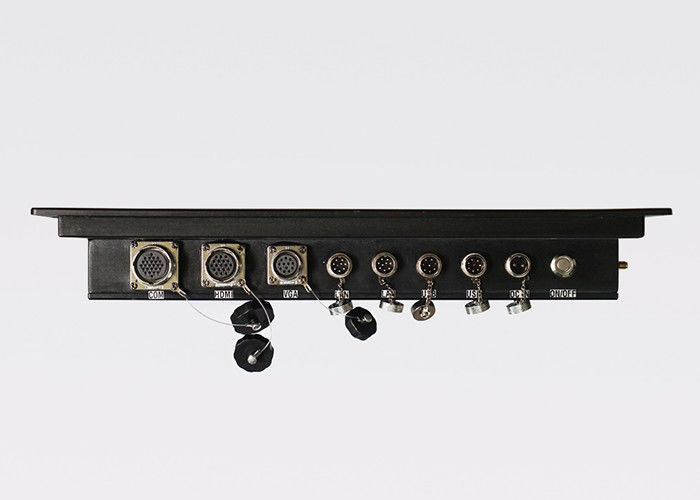

7.  Screw-on Water-tight IO Cables Included.



8. 9-24V wide voltage support









17" Outdoor Waterproof Computer​ Applications



railway project outdoor



Waste Water Management



marine navigation



outdoor building smart home



truck



food manufacturing



Industry automation



and so on.





Advantages



1. Intel® celeron J1900, 2.0GHz, quad core, fanless,noiseless.



2. 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, 1xHDMI



3. Sealed I/O with cable set included,fully IP65 waterproof, Ideal for outdoor use or the environment with water or humid.



4. No MOQ required. Accept customization.





Specification





Model:SC19W
PC
CPU Intel® celeron J1900, 2.0GHz, quad core, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, (4G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network Onboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI optional
I/O Interface 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, 1xHDMI
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 19"
Resolution 1280x1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits,sunlight readable
Response time 2ms
Contrast ratio 1000:1
View angle 80/80/85/85 (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Surface Hardness 3H
Luminousness 90%
Touch Interface USB
Touch response time 2ms
Working Life >35 million times
Touch options (10 point capacitive touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 9-24V wide voltage
Power consumption ≤35W
Enclosure
Material Aluminum Alloy front bezel + High strength cold rolled steel back case
Color Black( white, Silver , color can be customized )
VESA mounting 100×100mm
IP-grade IP65
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 9 KG
Gross weight 11KG
Product Dimension 45.4×26.2×5.4 cm
Packing size 58×48×13 cm
Accessories Power adapter,waterproof VGA/HDMI/RS232/LAN/USB cable,touch driver,touch pen
Other
Mounting (options) 1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Warranty 1 year warranty





Drawing



6 Sided Sealed Fanless Industrial PC High Brightness Outdoor Waterproof Computer 0
