12 Inch full waterproof IP65 Panel PC with 1000 nit sunlight readable
Features
1. Panel size is 12.1 inch, other size waterproof panel PC can be customized.
2. Full aluminum-alloy enclosure with sealed design, good heat dissipation.
3. 1000 nits ,sunlight readable. (400 nits indoor brightness optional)
4. Adopt 4 wires resistive touch screen, high precision, durable, anti-interference.
5. Full IP65 waterproof ,dustproof.

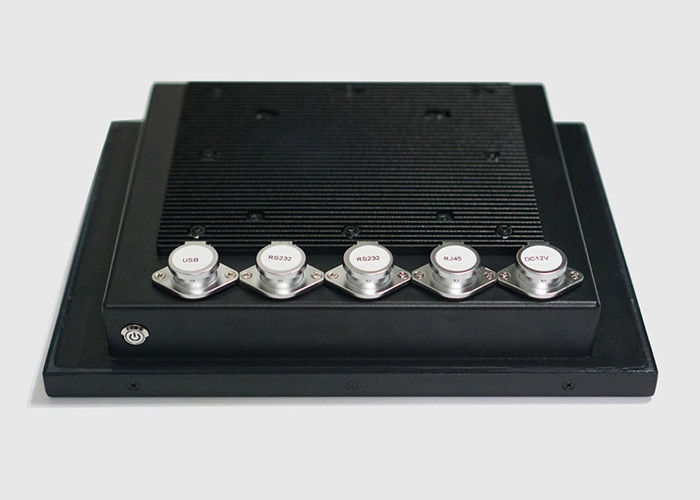

6. Water-tight IO Cables in the back case.
Applications
Marine/Sailing boat
Medical equipment
Humid production equipment
Truck
Food Industry
Security Turnstile
Chemical manufacturing
Tennis courts
Advantages
1. All material is aluminium alloy, more light.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, IP65 dustproof and waterproof,
Specification
| Model:SC121W | |
| PC | |
| CPU | Intel® Atom N2800, 1.8GHz, dual core, fanless |
| Chipset | Intel® NM70 |
| Memory | 2G DDR3, ( Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64GB,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 2×USB2.0, 2×RS232, 1×RJ45, 1×POWER |
| VGA/HDMI//Audio OUT/MIC IN optional | |
| Operation System | Support Windows XP,7/8/10, Linux/Ubuntu/Debian etc. |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000cd/m² , sunlight readable |
| Response time | 15ms |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resisitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤28W |
| Enclosure | |
| Material | aluminum alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100mm |
| IP-grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3kg |
| Gross weight | 4.5kg |
| Product Dimension | 31×25×6 cm |
| Packing size | 46×35×21 cm |
| Accessories | Power cable, USB cable, RS232 cable, RJ45 cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
