Full View Angle Capacitive Touch Monitor 10.1 Inch Widescreen VGA HDMI DVI Inputs

Place of Origin Shenzhen, China
Brand Name Shinho
Certification CE, FCC, RoHS
Model Number SL101
Minimum Order Quantity 1 piece
Price Negotiation
Packaging Details 1 piece/gift box weight :2kg gift box size:33*40*19cm
Delivery Time Shipped in 5 days after payment
Payment Terms T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
Supply Ability 5000 Piece/Pieces per Month
Product Details
Panel Size 10.1'' Resolution 1366*768
Touchscreen Type Project Capacitive Touch (10 Points ) Working Voltage DC 12V-24V
Inputs VGA , DVI , HDMI IP Grade Front Panel IP65 Waterproof
View Angle 89°/89°/89°/89° (R/L/U/D) Mounting Embedded Mounting
High Light

capacitive touch screen monitor

,

industrial touch screen monitor

Leave a Message
Product Description

Full View Angle 10.1 Inch Widescreen Capacitive Touch Monitor with VGA HDMI DVI USB




Features





1. The material is aluminium alloy,light weight,good heat dissipation.


2. Industrial LCD panel, wide viewing angle, high nits, true color.



3. 3MM untra bezel,ideal for embedded in machine.



4.  Anti-jamming performance.reach EMI/EMC standard.


5. Adopt multi-points PCAP touch panel , high sensitive and fast-response.


6. High performance mainboard, 7x24 continuous operation.


7. 12-24V wide voltage support.



8. Provide 4A 14V power supply,CE,FCC passed. connection terminal optional,can connect your machine for power directly.



9. VGA+HDMI+DVI+ touch .full interfaces.







10.1 Inch Capacitive Touch Monitor Applications



Industrial automation



laboratory



Self service vending machine



parking machine



CNC machine



sports lotteries



Customer Feedback Kiosk



Medical equipment





Customization Service



1. resistive touch,infrared touch



2. 1280*800 resolution,high resolution 1920*1200.



2. Anti-glare.



3. Auto dimming.



4. 24V power with Phoenix terminal.



5. Color: Silver ,Black ,White.



6. Size also can be customized according to your machine.



7.Can add your logo



8.COM RS232 for touch.





Specification





Model:SL101
LCD panel
Panel size 10.1"
Resolution 1366*768
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400
Contrast ratio 1000:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 1.5kg
Gross weight 2kg
Product Dimension 29.4×19.4×4.26cm
Packing size 33*40*19cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE,FCC,RoHS



Pictures

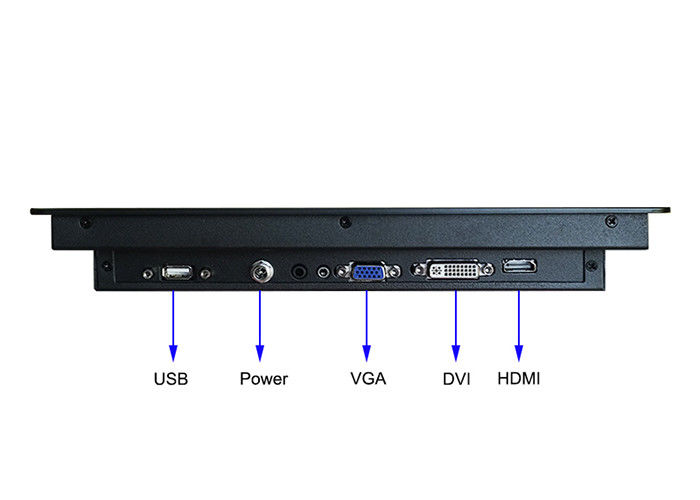

Full View Angle Capacitive Touch Monitor 10.1 Inch Widescreen VGA HDMI DVI Inputs 0







Drawing



Full View Angle Capacitive Touch Monitor 10.1 Inch Widescreen VGA HDMI DVI Inputs 1
