Open Frame Touch Screen Monitor / Open Frame Touchscreen LCD For CNC Machine
Product Details
| Panel Size | 15'' | Resolution | 1024*768 |
|---|---|---|---|
| Touchscreen Type | 5 Wire Resistive Touch | Working Voltage | DC 12V |
| Inputs | VGA , DVI,HDMI,USB For Touch | Brightness | 400 Nits |
| Material | High Strength Cold Rolled Steel | Support Mounting | Embedded Mounting,desk Stand Mouting |
| High Light | open frame touch screen monitor,open frame led monitor |
||
Product Description

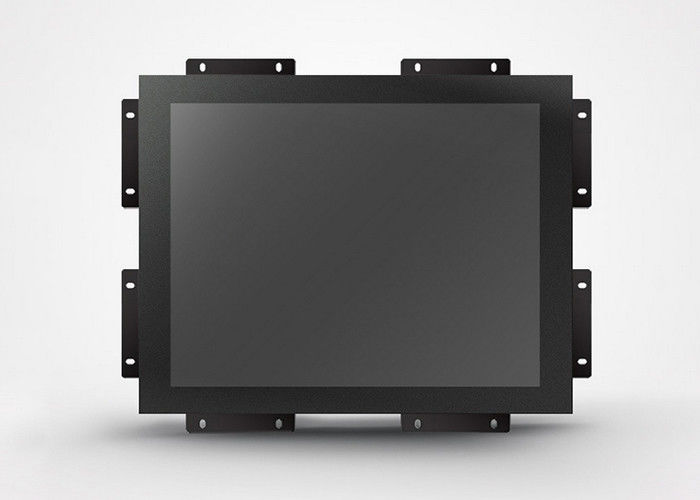

15'' Industrial Open Frame Touchscreen Monitor for CNC machine
Features
1. 15" LCD, 1024 x 768 Resolution
2. 5 wire resistive touch
3. High strength cold rolled steel,Black color.
4. Open frame design.
5. VGA+HDMI+DVI full interfaces.
6. providing 4A 12V Dajing power supply,CE,FCC passed,VGA OR HDMI cable,USB touch cable, embedded mounting screws,open frame kits.
15'' Open Frame LCD Monitor Applications
Sorting machine
Customer Feedback Kiosk
Egas Printer box
Customer Feedback Kiosk
Self service photo studio
CNC machine
Check-In Kiosks
Workshop production line
Industrial automation
Self-recovery machine
Advantages
1. Robust and durable full metal case, shockproof, excellent heat dissipation.
2. 15‘’ Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wire resistive touch panel , stable, durable, anti-interference
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
6. In stock ,2-3 days for sample delivery time,7-10 working days for order more than 100 pcs.
Specification
| Model:SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (capacitive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 4.5kg |
| Gross weight | 5kg |
| Product Dimension | 38.63×31.1×5.5cm |
| Packing size | 46*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card |
| Other | |
| Mounting | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Drawing
