High Precision Stainless Steel Panel PC / Waterproof Touch Panel 64G SSD Hard Disk

Brand Name: Shinho
Model Number: SC104W
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen , China
Certification:
CE , FCC , RoHs
Size:
10.4 Inch
CPU:
Intel® Core I3-4010u,dual Core,1.7GHz, Fanless
RAM:
4G DDR3
Hard Disk:
64G SSD
IP Grade:
Full IP65
Touch Type:
10 Points Capacitive Touch
Resolution:
1024x768
Aspect Ratio:
4:3
Brightness (cd/m²):
1000 Nits,sunlight Readable
Material:
Stainless Steel Case
Highlight:

industrial panel mount pc

,

fanless all in one pc

Product Description

Full IP65 Stainless Steel Panel PC 10.4 Inch with i3-4010u and Capacitive Touch

Features:

1. Stainless steel is the material of full case.

2. Various and multiple waterproof ports.



3. The viewing angle is 80℃/80℃/80℃/80℃/ (R/L/U/D).

4. Adopt 10 points PCAP touch panel, high precision, durable, anti-interference.

5. High performance motherboard, 7x24 continuous operation.

6. Full sealed and fanless design with full IP65 waterproof, and sunlight readable optional.





Application:



Chemical manufacturing



Marine/Sailing boat/Steamer/Yacht



Security Turnstile



Hot industry



Fog system controller



Mining industry



Some other outdoor applications



Some other poor working enviroment





Advantages



1. Material is stainless steel, very sturdy and durables.


2. CPU is Intel® core i3-4010u,dual core,1.7GHz, fanless, better than J1900, more efficient.


3. The ports can be customized face down and Pin type can be made also.


4. 10-36V wide voltage can be option.


5. Full IP65 waterproof and sunlight readable, can be used for various outdoor usage.



6. Capacitive touch can be used by wet finger.





Specification



Model:SC104W
PC
CPU Intel® core i3-4010u,dual core,1.7GHz, fanless
Memory 4G DDR3, (2G ,8G optional)
Hard Drive Capacity 64G SSD
Hard Drive Optional SSD: 32G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network Onboard Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 4*USB+2*LAN+1*RS232
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 10.4"
Resolution 1024x768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits,sunlight readable (400 nits optional)
Response time 10ms
Contrast ratio 1000:1
View angle 80/80/80/80 (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Touch options ( 5 wire resistive touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage 12V (9-36V wide voltage optional)
Power consumption ≤45W
Enclosure
Material stainless steel case
Color Silver
VESA mounting 75×75mm/100×100mm
IP-grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 5.5KG
Gross weight 7KG
Product Dimension 30.5×25.22×5.2cm
Packing size 44×35×17 cm
Accessories Power adapter,waterproof RS232/LAN/USB cable,power cord
Other
Mounting (options) 1) provide wall bracket for wall-mounting, VESA 100×100mm
2) provide stable metal holder to support the monitor
Certificates CE,FCC,RoHs
Warranty 13 months warranty





Pictures

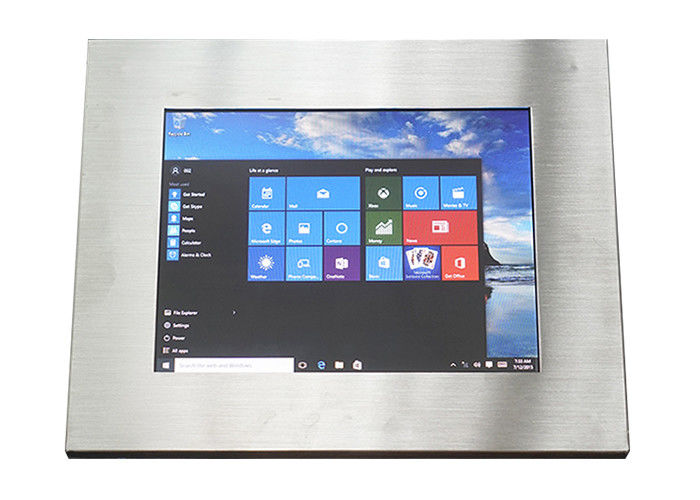

High Precision Stainless Steel Panel PC / Waterproof Touch Panel 64G SSD Hard Disk 0



Drawing





High Precision Stainless Steel Panel PC / Waterproof Touch Panel 64G SSD Hard Disk 1
