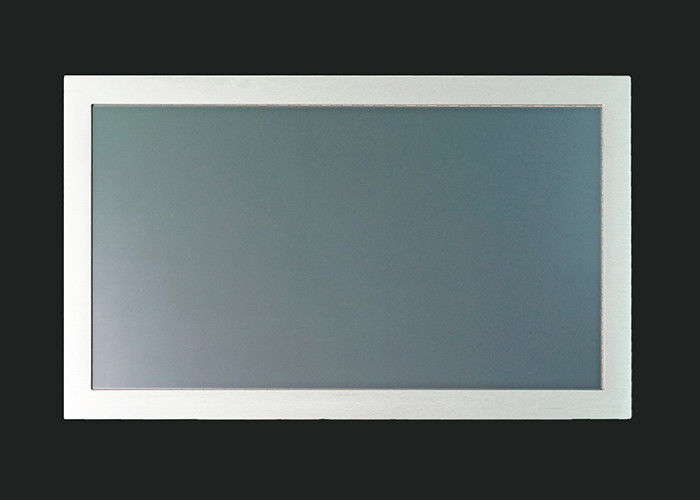

Heat Dissipation Resistive Industrial Touch Panel PC aluminum alloy Full enclosure
| Place of Origin | Shenzhen , China |
|---|---|
| Brand Name | Shinho |
| Certification | CE , FCC , RoHS |
| Model Number | SC185 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Packaging Details | 1PC/Carton Weight:6KG/PC Packing size: 59×42×19cm |
| Delivery Time | 10-15 working days |
| Payment Terms | T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram |
| Supply Ability | 5000 Piece/Pieces per Month |
Product Details
| Size | 18.5 Inch | CPU | Celeron J1900 , Quad Core , 2.0GHz, Fanless |
|---|---|---|---|
| Touch Type | 5 Wire Resisitive Touch | Resolution | 1366×768 |
| Brightness (cd/m²) | 450 Cd/m2 | View Angle | 80°/80°/80°/80° (R/L/U/D) |
| High Light | industrial all in one pc touch screen,industrial touch panel computer |
||
Product Description
18.5 Inch Industrial Touch Panel PC with Resisitive Touch and Heat Dissipation
Features:
1. Full enclosure is aluminum alloy.
2. There is a heatsink in the back case.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference
4. Flat panel and front panel IP65 waterproof and dustproof.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
6. Various ports: 2×USB2.0, 2×USB3.0, 2 x COM RS232, 2×LAN, 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC
Applications
Medical environment
Chemical manufacturing
Food & beverage processing
Security Turnstile
Consumer packaged goods industries
Process control systems
Industrial control cabinet
Welding industry
CNC machinery control
Industrial automation
Advantages
1. CPU is J1900 fanless, noiseless and low power consumption.
2. Heatsink in the back, it's superior heat dissipation.
3. Industrial LCD panel and touchscreen is industrial grade, high nits, true color and suitable for poor working enviroment.
4. -25 ℃ to 75℃ wide temperature support, suitable for different industry application.
5. Various customized module can be made.
6. Appearance design is fluent and beautiful.
Specification
| Model:SC185 | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 ( Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 16GB,32GB,64GB,128GB,256GB |
| HDD: 320GB,500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek® High Definition Audio Decoder (5.1) Digital audio via HDMI Port |
| Network | 2x Realtek® Gigabit Ethernet Controller(RTL8111F) |
| Wireless Network | WIFI |
| I/O Interface | 2×USB2.0 , 2×USB3.0, 2 x COM RS232 , 2×LAN |
| 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Opetation System | Windows7/8/10, Linux/Ubuntu/Debian |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1366×768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 450 cd/m² |
| Response time | 3ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (IR touch ,capacitive touch optional) |
| VESA mounting | 100×100 mm |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤50W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -25 to 75°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 4.5kg |
| Gross weight | 6kg |
| Product Dimension | 46×28.4×5.7cm |
| Packing size | 59×42×19cm |
| Accessories | Power cable, touch pen , WIFI antenna , embedded mounting screws |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Pictures
Drawing
