Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHS
Model Number:
SC19

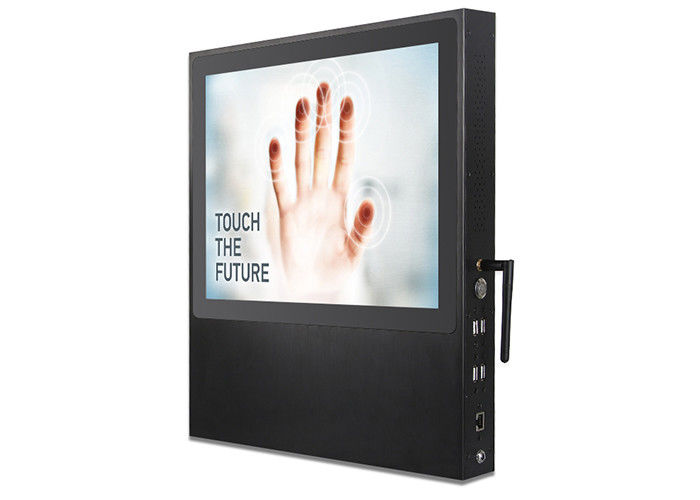

19 Inch Industrial Touch Panel PC with Double-sided screen and RFID reader
Features:
1. Full case is brushed metal craft with seamless design.
2. Front panel is IP65 grade, waterproof and dustproof.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded mounting, desk stand mouting etc.
6. Customized with Double-sided screen, PC integrated with speaker, RFID, fingerprinter reader.
Applications
Public security system
Medical environment
Registered machine
Self-service payment machine
Data entry & system
Self-service ordering machine
Visitor management system
Personal identity information collection system
Advantages
1. CPU is J1900 fanless, noiseless and low power consumption.
2. Wide viewing angle, support multi-dimensional vision.
3. Capacitive touch is workable by wet finger.
4. -10C to +60°C Wide temperature support, suitable for various working envoirment.
5. Double-side screen, support viewing by different side.
6. Integrated with speaker, RFID, fingerprinter reader, suitable for different application.
Specification
| Model:SC19 | |
| Windows PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, ( Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 4×USB 2.0,1×RJ45,1×POWER DC |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel (Double-sided screen) | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.5kg |
| Gross weight | 9kg |
| Product Dimension | TBD |
| Packing size | 74×45×18 cm |
| Accessories | Power adapter,user manual,warranty card |
| Other | |
| Customization | Speaker |
| RFID | |
| Fingerprint Reader | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |
