Multimedia Infotainment Embedded Touch Panel PC High Performance Motherboard

Place of Origin Shenzhen , China
Brand Name Shinho
Certification CE , FCC , RoHS
Model Number SC15
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 1pcs/carton weight: 6 KG/pcs packing size:47×43.5×18 cm
Payment Terms T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Product Details
Size 15 Inch CPU Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless
RAM 4 G DDR3, ( Max. 8G) Hard Disk 64 G (32GB,128GB,256GB Optional)
Touchscreen Type Project Capacitive Touch (10 Points) Resolution 1024*768
IP Grade Front Panel IP65 Waterproof
High Light

industrial panel pc

,

embedded industrial pc

Leave a Message
Product Description

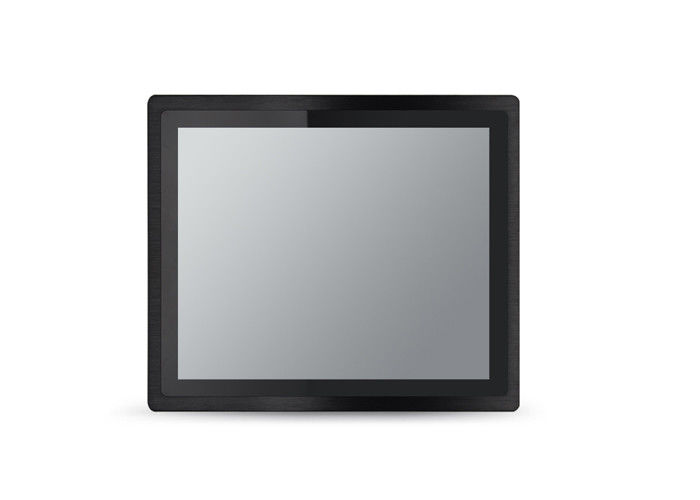

Front IP65 Capacitive Touch 15 Inch Panel Mount PC With J1900 Fanless CPU





This 15 Inch Panel Mount PC is a slim, fanless computer suitable for a wide variety of applications. The 15

inch industrial panel pc is built with the Bay Trail Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this capacitive touchscreen PC has an IP65 dust and waterproof rating.




Features



1. 15 " LCD panel, 1024*768 resolution.



2. Flat screen,10 point capacitive touch with IP65 waterproof front bezel.



3. CPU: Intel® Celeron J1900 , quad core , 2.0GHz, fanless



4. 4G RAM,64G SSD.


5. multi-points PCAP touch panel , high sensitive and fast-response.



6. High performance motherboard, 7x24 continuous operation.





15 Inch Panel Mount PC  Applications



Energy Industry



petroleum testing apparatus



Multi-media infotainment



Machine control



Communications control



Media servers



Data concentrators



Asset monitoring



Digital signage







Specification





Model:SC15
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, ( Max. 8G)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 2×USB 2.0,2×USB 3.0, 2 x COM RS232
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 15"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 5.5kg
Gross weight 6kg
Product Dimension 38×30×5.95cm
Packing size 47×43.5×18 cm
Accessories Power adapter,embedded screws,user manual,warranty card
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty





Embedded Installation picture



Multimedia Infotainment Embedded Touch Panel PC High Performance Motherboard 0





Drawing



Multimedia Infotainment Embedded Touch Panel PC High Performance Motherboard 1
