Front Bezel Capacitive Embedded Touch Panel PC / Fanless Industrial Computer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 10.4 Inch | CPU | Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless |
|---|---|---|---|
| RAM | 2 G DDR3, ( Max. 8G) | Hard Disk | 32G (64GB,128GB,256GB Optional) |
| Touchscreen Type | Project Capacitive Touch (10 Points) | Resolution | 1024*768 |
| IP Grade | Front Panel IP65 Waterproof | Material | Aluminium Alloy |
| High Light | panel mount computer,embedded industrial pc |
||
Product Description
Front bezel Capacitive Touch IP65 Fanless Industrial Computer 10.4"
This Fanless Industrial Computer 10.4" is with aluminium alloy material, light weight,good heat disipattion,pure flat screen,front panel IP65 waterproof and dustproof.10.4'' fanless computer suitable for a wide variety of applications. The 10.4 inch industrial panel pc is built with the Bay Trail Celeron J1900 quad-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. these panel PCs are easily installed into machinery, control panels and switching cabinets. These units are ideal for applications including process visualization, machine and operating data acquisition, order selection terminals, or even employee time and attendance tracking.
Features
1. 10.4 " LCD panel, 1024*768 resolution.
2. Flat screen,10 point capacitive touch with IP65 waterproof front bezel.
3. Open frame kits will be provided,suitable for install the monitor from the inside machine, only the screen will be showed on the machine.
4. CPU: Intel® Celeron J1900 , quad core , 2.0GHz, fanless
5. 2G RAM,32G SSD.
6. multi-points PCAP touch panel , high sensitive and fast-response.
7. High performance motherboard, 7x24 continuous operation.

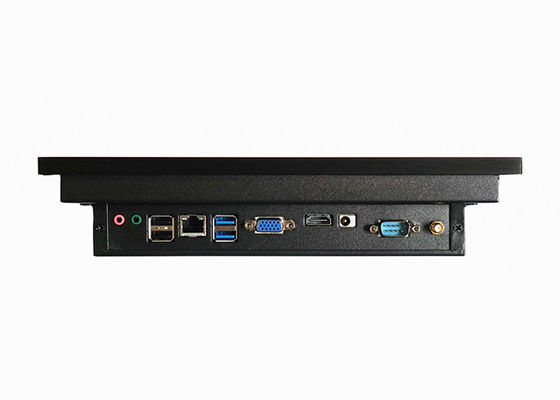

8. I/O Interface : 2×USB 2.0,2×USB 3.0, 1 x COM RS232,1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC.
Fanless Industrial Computer 10.4" Applications
Machine control
Photo booth
Gas station
CNC machine
Sorting machine
Self service labling machine
Data concentrators
Asset monitoring
Industrial automation
Specification
| Model:SC104 | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G,8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0,2×USB 3.0, 1 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 4kg |
| Product Dimension | 27.82×22.11×5.9 cm |
| Packing size | 44×37×17cm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |
| Mounting (options) | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |

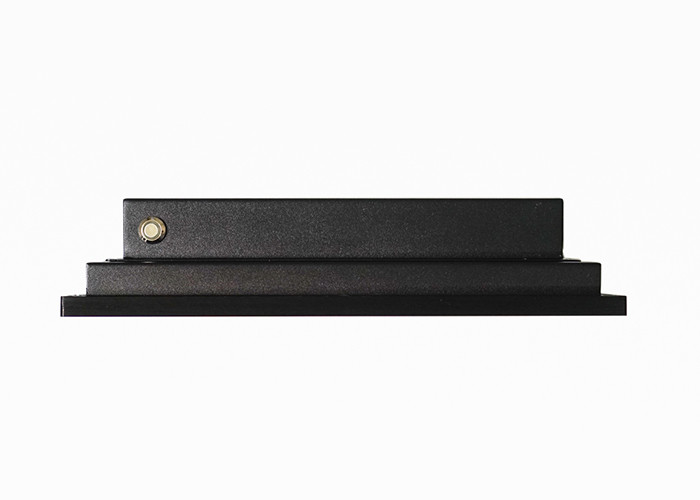

Pictures
Drawing
