Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE,FCC, RoHS
Model Number:
SL104W
Contact Us

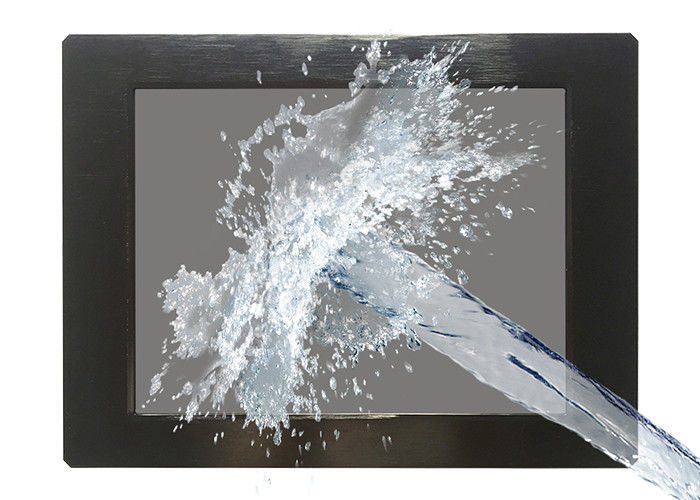

Touch monitor is an ideal replacement for less capable HMI control screens. The fully sealed high strength rolled steel housing makes it an ideal plug-and-play solution for High pressure humid environment. Featuring a fully fanless and IP67 rated waterproof design, you can confidently place this waterproof monitor into even the most demanding workplace environment. The monitor includes on-screen display (OSD) controls on the back of the unit for quick adjustment of your display settings.
Feature
1. 10.4" Flush LCD Touchscreen.
2. IP67 Fully Enclosed Fanless Design.
3. VGA Inputs.
4. Resistive or Capacitive Touchscreen
5. M12 Metal I/O Connectors
Application
Vehicles/Truck
Aircraft
Boats/Ships
Other applications in brightly-lit environments
Marine/Sailing boat
Security Turnstile
Stadium
Bicycle sharing
Sporting ground
Truck
Food Industry
Specifications
| Model:SL104W | |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 800*600 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <5ms |
| Luminousness | 85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | optional |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | aluminium alloy front bezel +High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75/100×100 mm |
| IP-grade | IP67 |
| Operating Environment | |
| Temperature Range | operating: -10°C to 60°C, storage :-20°C to 70°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 27×21×3.8cm |
| Packing size | 36×30×15cm |
| Accessories | Power adapter, VGA/USB cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Drawing
