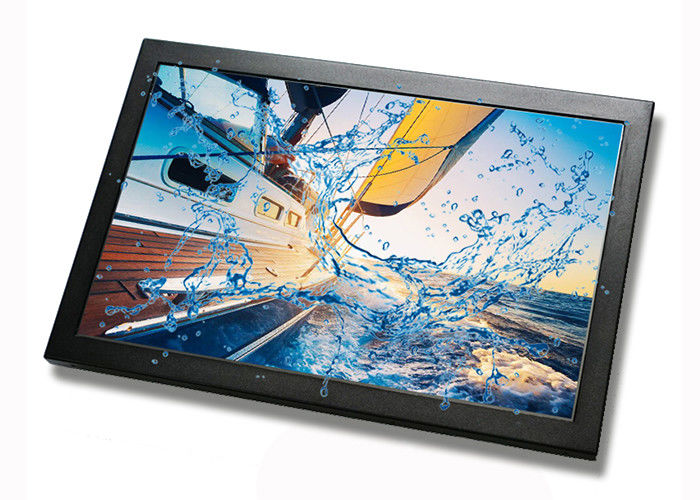

Full IP65 Water Resistant 19" LCD Touch Display Industrial Monitor
Features
1. Industrial LCD panel, 19 inch
2. 4 wires resistive touch screen, high precision
3. Full IP65 Waterproof grade
4. 350nits (sunlight readable optional)
5. Robust and durable all-metal enclosure
6. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility
Application
Industrial environment
Hotel check-in kiosk
Parking lot
Digital Signage
Gas station
Specification
| Model:SL19W | |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1440*900 (1280*1024 optional) |
| Aspect ratio | 16:10 (4:3 optional) |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 350 (1000 nits, sunlight readable optional) |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| VGA | optional |
| HDMI | 1×HDMI |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 35 W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100 mm |
| IP Grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 4.9kg |
| Gross weight | 6.95kg |
| Product Dimension | 47×30×5 cm |
| Packing size | 56×18×39 cm |
| Accessories | Power adapter, HDMI /USB cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
