1024x600 Resolution Industrial Android Tablet Android 4.4.2 Operating System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 1000 Nit Industrial Android Tablet PC 7 Inch | CPU | RK3188, ARM® Cortex™-A9 Quad-core 32-bit Up To 1.6GHz |
---|---|---|---|
RAM | 2GB DDR3 | Storage | 8GB EMMC On Board Storage , MicroSD Card Slot |
Panel Size | 7 Inch | Resolution | 1024×600 |
Brightness (cd/m²) | 1000 Cd/m², Sunlight Readable | Touchscreen Type | Project Capacitive Touch (10 Points ) |
High Light | rugged android tablet,industrial grade tablets |
1000 Nit Industrial Android Tablet PC 7 Inch With GPS and Bluetooth
Features:
1. 7 Inch WXGA (1024 x 600) TFT LCD Display.
2. Processor is ARM® Cortex™-A9 Quad-core 32-bit up to 1.6GHz.
3. LP DDR2 2GB, 8GB eMMC on board storage , MicroSD card slot.
4. Projected Capacitive Multi-Touch Panel.
5. IP65 dustproof and waterproof, sunlight readable.
6. Android™ v4.4.2.
The Android™-based 7.0” Military Rugged Android Tablet provides high resolution TFT LCD display with anti-scratch Gorilla™ glass. Moreover, this projected capacitive multi-touch panel offers outstanding viewing and operating experience. The front panel is IP65 rated for ingress protection, making it fully resistant to dust and water. It is an extreme operating temperature range at -10°C ~55°C. There are customization module such as builted in a G-sensor, light sensor, E-compass and GPS navigation, suitable for a great number of applications can be realized. And its brighness upto 1000 nits, can be used for outdoor.
Specification
Model:SC062A | |
PC | |
CPU | RK3188 ARM® Cortex™-A9 Quad-core 32-bit up to 1.6GHz |
Memory | 2G , ( Max. 4G) |
Storage | eMMC 8G , ( Max. 16G) |
Decoding Resolution | Support maximum 2048*1536 |
Operation System | Android 4.4.2 |
Play Modes | Support timing, loop and spots etc. play modes |
Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
Image Format | JPG/BMP/GIF/TIFF/PNG |
Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
Audio Format | MP3,WMA,AAC,etc. |
RTC Real Time Clock | YES |
I/O Interfaces | |
USB | 1×USB , 1 x mini USB |
COM | 1×COM |
LAN | 1×RJ45, 10M/100M adaptive ethernet |
HDMI | 1×HDMI , support 1080p |
DC | 1×DC |
Card Slot | 1×TF |
LCD panel | |
Panel size | 7" |
Resolution | 1024 x 600 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness | 1000 cd/m² , sunlight readable |
Response time | 5ms |
Contrast ratio | 800:1 |
View angle | 85°/85°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 point capacitive touch |
Touch response time | <2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working Life | >50 million times |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤45W |
Enclosure | |
Appearance | Flat panel |
Material | Aluminum alloy + High strength cold rolled steel |
Color | Black, white, Silver , color can be customized |
VESA mounting | 75×75mm |
IP grade | front IP65 waterproof |
Operating Environment | |
Working temperature | -10°C to 55°C |
Relative humidity | <85% |
Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
Impact resistance | 10g acceleration , 11ms period |
Packing Details | |
Net weight | 1.5 kg |
Gross weight | 2.5 kg |
Product Dimension | 21×15×3 cm |
Packing size | 34×28×10 cm |
Accessories | Power adapter,embedded screws,warranty card, user manual |
Other | |
Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
2) provide stable metal holder to support the monitor | |
Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.

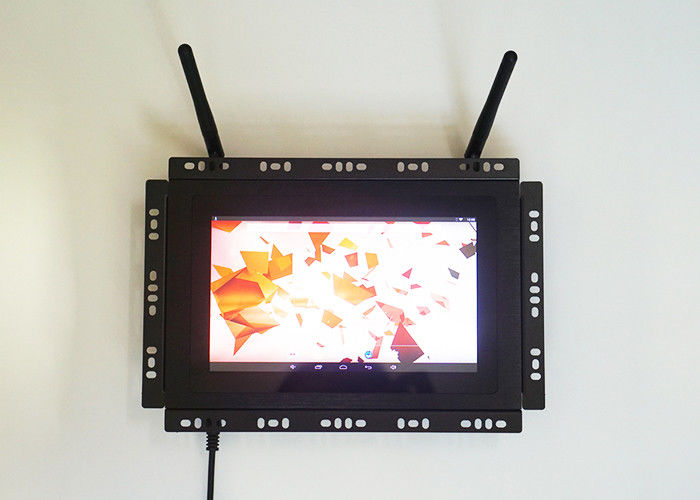

Pictures
Drawing
