1024x768 High Resolution Multi Touch Screen Monitor With VGA HDMI DVI Inputs

Brand Name: Shinho
Model Number: SL12
MOQ: 1 piece
Price: Negotiation
Payment Terms: T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS
Resolution:
1024*768
Panel Size:
12''
Touchscreen Type:
5 Wire Resistive Touch
Working Voltage:
DC 12V-24V
Inputs:
VGA , DVI , HDMI
IP Grade:
Front Panel IP65 Waterproof
IP Grade:
Front Panel IP65 Waterproof
View Angle:
80°/80°/80°/80° (R/L/U/D)
View Angle:
80°/80°/80°/80° (R/L/U/D)
Material:
Aluminium Alloy
Material:
Aluminium Alloy
Highlight:

5 wire resistive touch screen

,

resistive touch screen monitor

Product Description

12 Inch 1024*768 High Resolution Resistive Touch Monitor With VGA HDMI DVI




Features



1. Panel size: 12 inch,1024*768 high resolution.



2. Flat screen, with front IP65 waterproof rating.


3. Industrial LCD panel, wide viewing angle, high nits, true color.



4. Anti-jamming performance.reach EMI/EMC standard.


5. Adopt 5 wire resistive touch panel , stable, durable, anti-interference.


6. High performance mainboard, 7x24 continuous operation.


7. 12-24V wide voltage support.



8. 3MM untra bezel,ideal for embedded in machine.



9. VGA+HDMI+DVI+ touch .full interfaces.



10. In stock, 3 working days for sample shipment, 7-9 working days for order more than 200 pcs.







12 Inch Resistive Touch Monitor Applications



Indoor kiosk



game cabinet



Self service vending machine



process control systems



CNC machine



sports lotteries



Customer Feedback Kiosk



SCADA HMI





Customization Service



1. Capacitive touch,infrared touch



2. 1280*800  widescreen. 16:10 aspect ratio



3. 1000 nits,sunlight readable.



4. Anti-glare.



5. Auto dimming.



6. 24V power with Phoenix terminal.



7. Full IP65 waterproof monitor.



8.Show your logo when turn on the monitor or print the logo on the bezel of monitor.



9.COM RS232 for touch.



10. AV,BNC.





Specification



Model:SL12
LCD panel
Panel size 12"
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Surface Hardness 3H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >35 million times
Touch options (capacitive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI optional
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 1.5kg
Gross weight 2kg
Product Dimension 31.9×25.7×4.26cm
Packing size 33*40*19cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE,FCC,RoHS



Pictures

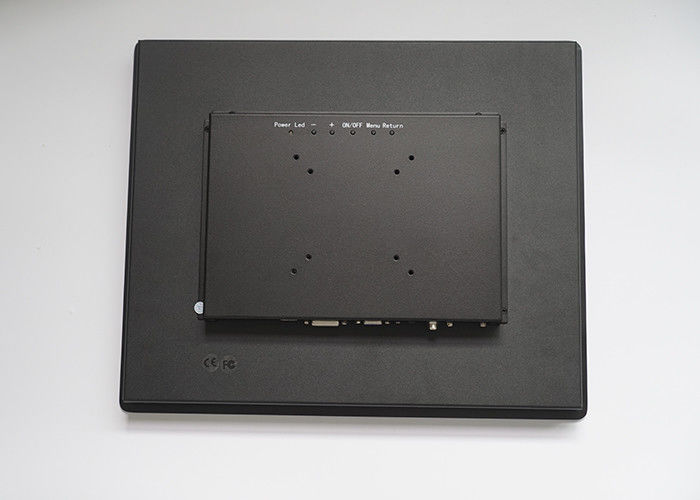

1024x768 High Resolution Multi Touch Screen Monitor With VGA HDMI DVI Inputs 0





Drawing



1024x768 High Resolution Multi Touch Screen Monitor With VGA HDMI DVI Inputs 1
