Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SL156

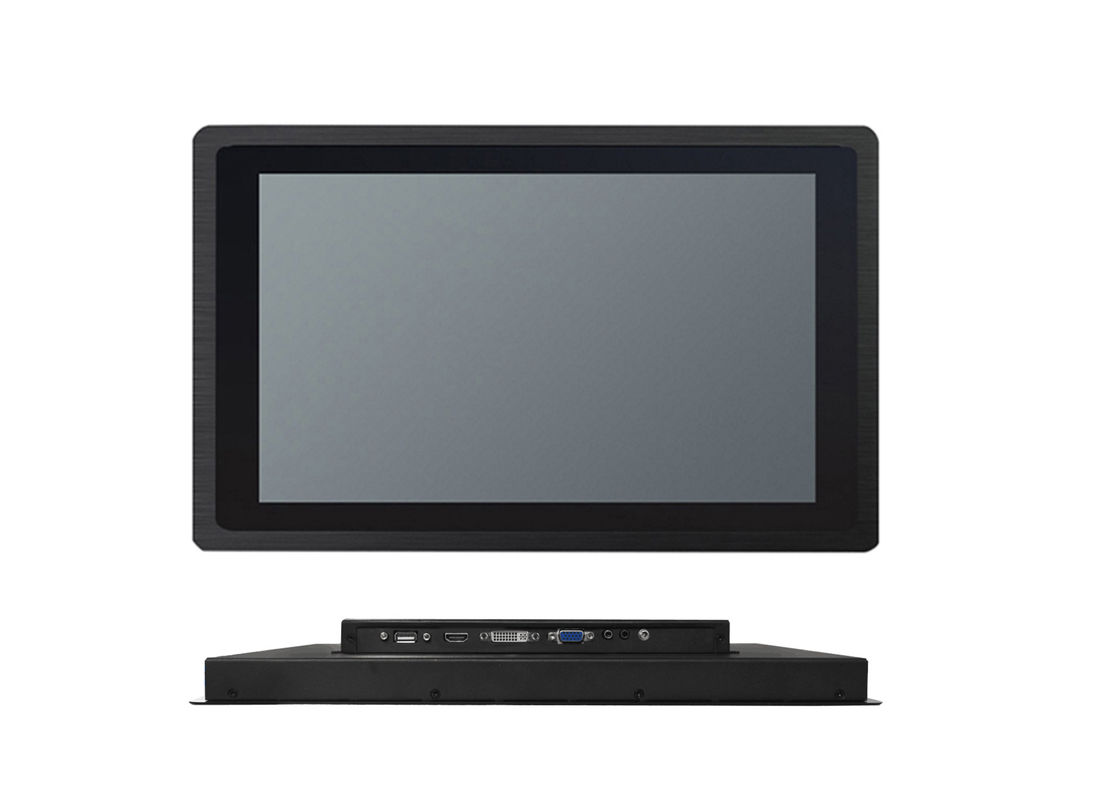

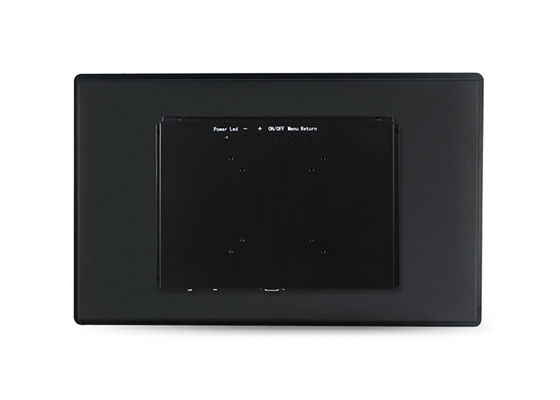

15.6 Inch Widescreen 1920*1080 High Resolution Capacitive Touch Monitor
Features
1. Panel size: 15.6 inch,1920*1080 high resolution.
2. Flat screen, with front IP65 waterproof rating.
3. Anti-jamming performance.reach EMI/EMC standard.
5. Project Capacitive Touch (10 points )
6. High performance mainboard, 7x24 continuous operation.
7. 12-24V wide voltage support.
8. 3MM untra bezel,ideal for embedded in machine.
9. Provide Embedded screws,very easy to install the monitor in the machine.
15.6 inch Capacitive Touch Monitor Applications
Communications control
game cabinet
Self service vending machine
Entertainment
Signage Systems
sports lotteries
Customer Feedback Kiosk
apartment buildings
Customization Service
1. Resistive touch,infrared touch
2. 1000 nits,sunlight readable.
4. Anti-glare.
3. Auto dimming.
4. 24V power with Phoenix terminal.
5. Full IP65 waterproof monitor.
6.Show your logo when turn on the monitor or print the logo on the bezel of monitor.
7.COM RS232 for touch.
8. AV,BNC.
9. Size:7'',8'' ,10.1'',12'',13.3'',15'', 15.6'', 17'',17.3'' ,19'', 21.5'', 22'', 24'' ...
Specification
| Model:SL156 | |
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1x HDMI |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 42×26.9×4.8cm |
| Packing size | 47*44*18cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |
Installation Pictures
Drawing
