Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SL32W
Contact Us
Outdoor 32 Inch Waterproof Touch Monitor 1500 Nits Industrail LCD Screen
Features
1. Industrial 32 inch LCD Panel
2. 1920*1080 resolution, Full HD
3. Full IP65 waterproof for outdoor use
4. 10 points PCAP capacitive touch
5. Sunlight readable 1500cd/m2 luminance
6. HDMI VGA RS232
Advantages
1. Aluminum enclosure, excellent heat dissipation
2. Industrial IPS LCD panel, full viewing angle, high nits
3. Anti glare, UV and IR resistant glass.
4. With the latest technology optical bonding.
5. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility

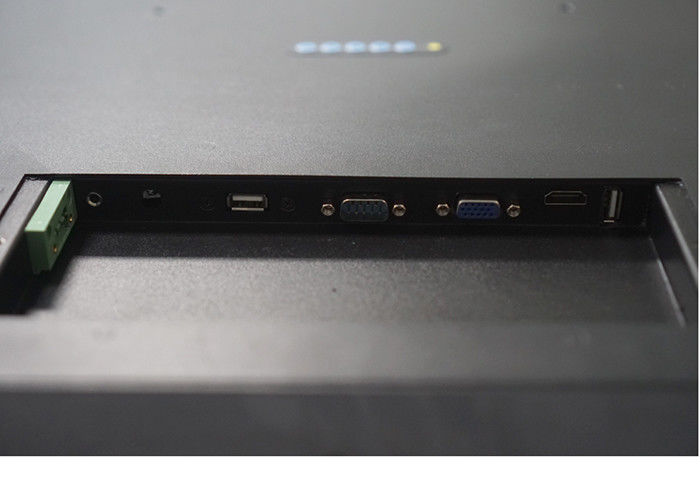

6. Inputs: VGA,HDMI, USB for Touch, RS232 (for control of brightness and Remote on/off)
Applications
outdoor railway project
marine navigation
Waste Water Management
food manufacturing
outdoor building smart home
vehicle
Industry automation
Specification
| Model:SL32W | |
| LCD panel | |
| Panel size | 32" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits,sunlight readable |
| Contrast ratio | 1200:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( infrared touch optional) |
| Singal Ports | |
| HDMI | 1×HDMI |
| VGA | 1×VGA |
| RS232 | 1×RS232 |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 24V |
| Power consumption | ≤130W |
| Enclosure | |
| Material | Aluminum alloy |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 200×200 mm |
| IP Grade | IP65 |
| Operating Environment | |
| Temperature Range | operating: -20 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 18kg |
| Gross weight | 20kg |
| Product Dimension | 80×53×7.92cm |
| Packing size | 100×64×17 cm |
| Accessories | Power adapter,HDMI/USB/RS232 cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 200×200mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
