Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SL08

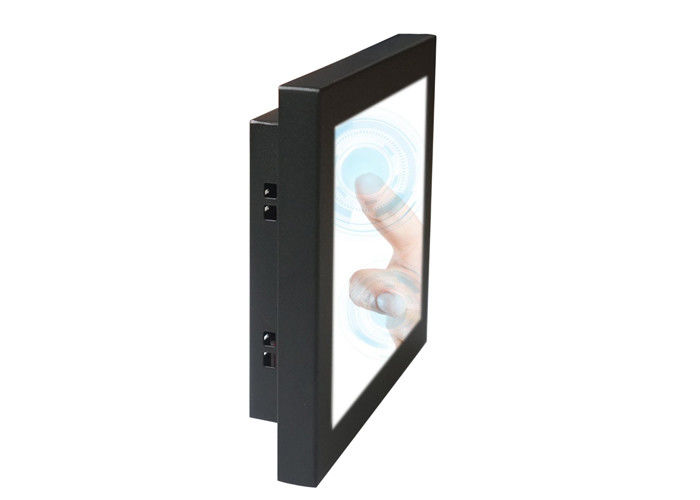

8 Inch Metal Case Capacitive Touch Open Frame LCD Monitor For Kiosk
Features
1. Panel size: 8 inch , 800*600, suggest 1024*768 high resolution.
2. Robust and durable full metal case, shockproof, excellent heat dissipation.
3. 10 point pcap touchscreen.high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. VGA+DVI interface, HDMI also can be produced.
8'' Open Frame LCD Monitor Applications
raspberry pi
Data Acquisition
Advertising
Signage Systems
sports lotteries
Customer Feedback Kiosk
Express delivery locker
Factory Automation
Customization Service
1. Resistive touch,infrared touch
2. 400 nits for indoor use,1000 nits for semi-outdoor/outdoor use.
3. Auto dimming.
4. 24V power with Phoenix terminal.
5. 12-24V wide voltage.
6. VGA+HDMI+DVI / AV/ BNC
7. Full IP65 waterproof monitor.
8.Show your logo when turn on the monitor or print the logo on the bezel of monitor.
9.COM RS232 for touch.
10. Material: High strength cold rolled steel, stainless steel, Aluminium alloy.
Specification
| Model:SL08 | |
| LCD panel | |
| Panel size | 8" |
| Resolution | 800*600 (1024*768 optional) |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (4 or 5 wires restive touch, IR touch optional) |
| Signal Ports | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V , 50-60Hz |
| Working voltage | DC 12V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 80% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2kg |
| Gross weight | 3kg |
| Product Dimension | 20.4*16.13×4.2cm |
| Packing size | 33*40*19cm |
| Accessories | Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card |
| Other | |
| Mounting | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Drawing
