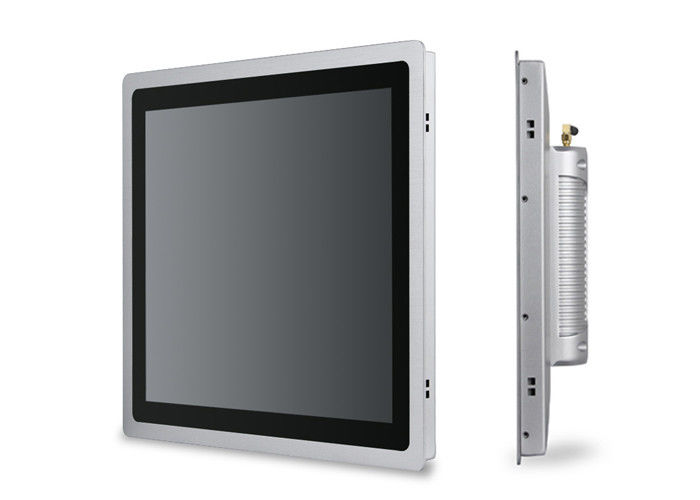

19 Inch Front IP65 Embedded Touch Panel PC Highly Sensitive And Fast-Response

19 Inch Front IP65 Embedded Touch Panel PC Highly Sensitive And Fast-Response

industrial panel pc

panel mount computer

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
19 Inch
Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless
4 G DDR3
Hard Disk:
Touchscreen Type:
Project Capacitive Touch (10 Points)
Aspect Ratio:
Aluminium Alloy
Front Panel IP65 Waterproof And Dustproof
Product Description

19 Inch front IP65 waterproof and dustproof Embedded Touch Panel PC



1. 19" LCD panel,flat screen, 1280*1024 resolution. 4:3 Aspect ratio.

2. Adopt multi-points PCAP touch panel , high sensitive and fast-response.

3. Ultra-thin front bezel 7mm, ideal for embedded mounting.

4. CPU: Intel® Celeron J1900 , quad core , 2.0GHz, fanless.

5. 4G RAM,64 G SSD.

6. High performance motherboard, 365/ 7x24 continuous operation.

7. Aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.

Back case also dustproof.

8. Ideal for any industrial application and commercial application.



19 Inch dustproof Embedded Touch Panel PC Applications


CNC machine




vending machine


Self ordering machine


laser cutting machine


Car parking self-service payment machine


Data concentrators


Medical testing equipment


monitoring center


electrical control cabinet



Customization service:


1. 19'' 16:9 widescreen.


2. 1000 nits ,sunlight readable.


3. Anti-glare


4. Auto-dimming


5. full IP65 waterproof and dustproof


6.Touch: Capacitive touch,resistive touch,Infrared touch.


7. CPU: i3,i5,i7.


8. RAM:Max. 8G, Hard Drive:SSD: 64G,128GB,256GB, HDD: 500GB,1TB.


9. operating: -20 to 70°C


10. Android system.


11. Material: Metal case,Aluminum Alloy,stainless steel.


12. Build in module RFID/NFC/3G/4G/Fingerprint Reader/Microphone/Camera/label printer/GPS and so on.


13. Other PC size: 7'',8'',10.1'',10.4'',12'',15'',15.6'',17'',17.3'',19'',21.5'',22'',24'' and bigger size also can be produced.






CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory4 4G DDR3, ( Max. 8G)
Hard Drive Capacity 64G SSD
Hard Drive Optional SSD: 32G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 2×USB 2.0,2×USB 3.0, 2 x COM RS232
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 19"
Resolution 1280*1024
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 7.5kg
Gross weight 8kg
Product Dimension 45.1×38×5.92 cm
Packing size 59×49×18 cm
Accessories Power adapter,embedded screws,user manual,warranty card
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty


Drawing for reference
