Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE,FCC, RoHS
Model Number:
SL104W
Contact Us
The whole monitor carry IP67 waterproof and dustproof protection ratings ,watertight screw-on IO cables that enable these units to operate under extreme wet and dirty/dusty environments.
Feature
1. 10.4" industrial LCD panel.
2. Resolution: 800*600
2. IP67 Fully sealed Design.
3. VGA Inputs, HDMI or DVI can be produced.
4. 10 point capacitive touch,when water on the screen, the touch funciton also is working.

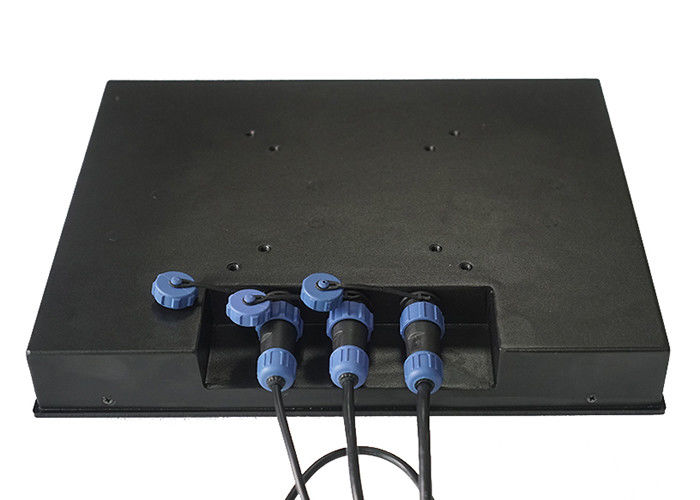

5. Screw-on Water-tight IO Cables Included.
Application
marine navigation
Ship
process control systems
Food Processing
Bicycle sharing
Sporting ground
Truck/Vehicle
Waste Water Management
Specifications
| Model:SL104W | |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 800*600 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points capacitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <5ms |
| Luminousness | 85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| VGA | 1×VGA |
| HDMI | optional |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD controlled by remove control | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | aluminium alloy front bezel +High strength cold rolled steel back case |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75/100×100 mm |
| IP-grade | IP67 |
| Operating Environment | |
| Temperature Range | operating: -10°C to 60°C, storage :-20°C to 70°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 26.3×21.05×3.52cm |
| Packing size | 36×30×15cm |
| Accessories | Power adapter, VGA/USB cable, remove control |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 75×75 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Pictures
Drawing
