Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE,FCC, RoHS
Model Number:
SL101W
Contact Us
The 10.1 inch IP65 resistive touch monitor carry IP65 waterproof and dustproof protection ratings ,watertight screw-on IO cables that enable these units to operate under extreme wet and dirty/dusty environments.
1000 nits ,sunlight readable. can have great performance under sunny day.
Feature
1. 10.1" industrial LCD panel.
2. Resolution: 1280*800 high resolution.
2. IP65 Fully sealed Design.

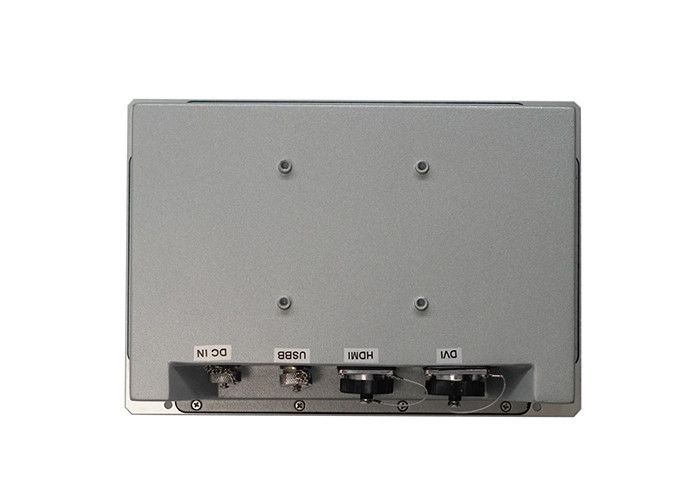

3. HDMI+DVI interfaces.
4. Adopt high precision industrial 5 wires resistive touch screen, EETI touch controller
when water on the screen, the touch funciton also is working.

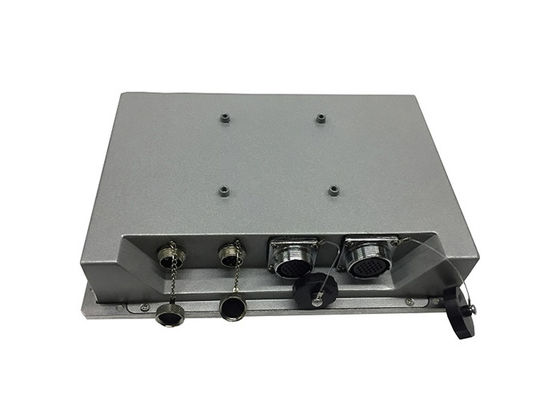

5. Screw-on Water-tight IO Cables Included.
Application
Logistics
machine manufacturing
Transportation
Ship
Food Processing
Sporting ground
Truck/Vehicle
Waste Water Management
marine navigation
security Turnstile
Specifications
| Model:SL101W | |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| DVI | 1×DVI |
| VGA | optional |
| HDMI | 1 ×HDMI |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 15 W |
| Enclosure | |
| Material | aluminium alloy bezel +High strength cold rolled steel back enclosure |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100 mm |
| Ingree Protection | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 2kg |
| Gross weight | 3kg |
| Product Dimension | 35×27×4.8 cm |
| Packing size | 44×38×13 cm |
| Accessories | Power adapter, DVI/USB cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
