1000 Nit Industrial Touch Panel PC Dimming Pot With Intel NM81 Chipset
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 1000 Nit Industrial Touch Panel PC 15 Inch | CPU | Intel® Core I3-4160, 3.6GHz,dual Core |
|---|---|---|---|
| Chipset | Intel NM81 | Touch Type | 10 Points Capacitive Touch |
| Resolution | 1024*768 | Brightness (cd/m²) | 1000 Nit, Sunlight Readable |
| View Angle | 85°/85°/85°/85° (R/L/U/D) | Product Dimension | 38.1×27.5×7 Cm |
| Material | Aluminum Alloy | Color | Silver |
| High Light | flat panel computer,industrial touch panel computer |
||
Product Description
1000 Nit Industrial Touch Panel PC 15 Inch With Dimming Pot and I3-4160
This compact and nimble 15" panel mount touchscreen PC is a slim, fanless computer suitable for a wide variety of applications. The industrial panel pc is built with the Celeron I3-4160 dual-core CPU, which employs a system on chip (SoC) architecture to ensure high reliability in many environments. This unit can be panel mounted or VESA mounted for quick and easy installation in your operations. Additionally, the front bezel of this resistive touchscreen PC has an IP65 dust and waterproof rating.
Features:
1. All material is aluminium alloy.
2. Various and multiple waterproof ports: 2×USB2.0 , 2×USB3.0, 4x COM RS232 , 1× RS485, 2×LAN, 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC
3. 85°/85°/85°/85° (R/L/U/D) is the viewing angle.
4. Touch type is 10 points capacitive touch, it's high precision, durable, anti-interference.
5. High performance motherboard, 7x24 continuous operation.
6. Great for open frame, also support wall mounting and embedded etc.
7. Brightness upto 1000 nits.

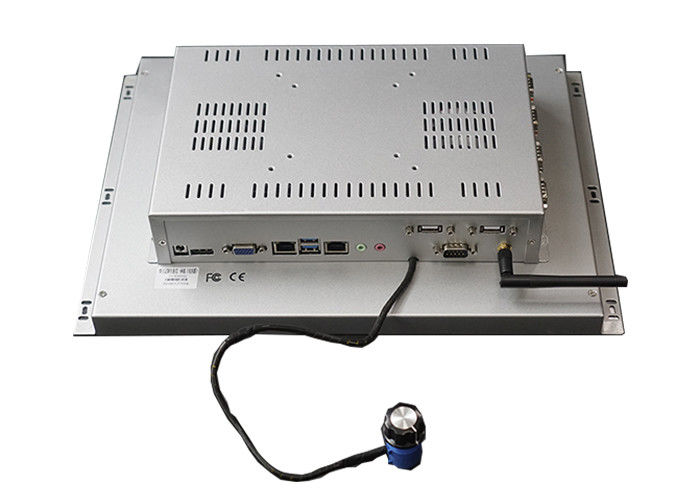

8. There is a dimming pot to adjust brightness from 0 to 1000 nits.
Application:
It is ideal for applications such as marine, sailing boat, CNC machinery control, stopping/starting processes, numerical control device, retail interactive kiosk, digital signage interface, industrial automation, some poor working enviroment and some other outdoor places.
Specification
| Model:SC15 | |
| PC | |
| CPU | Intel® core I3-4160,3.6GHz,dual core |
| Chipset | Intel NM81 |
| Memory | 4G DDR3 ( Max. 8G) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32GB,64GB,128GB,256GB |
| HDD: 320GB,500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek® High Definition Audio Decoder (5.1) Digital audio via HDMI Port |
| Network | 2x Realtek® Gigabit Ethernet Controller(RTL8111F) |
| Wireless Network | WIFI |
| I/O Interface | 2×USB2.0 , 2×USB3.0, 4x COM RS232 , 1× RS485, 2×LAN |
| 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Opetation System | Windows7/8/10, Linux/Ubuntu/Debian |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000 cd/m²,sunlight readable |
| Response time | 10ms |
| Contrast ratio | 1500:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >50 million times |
| Touch options | (IR touch ,resistive touch optional) |
| VESA mounting | 100×100 mm |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤100W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 4kg |
| Gross weight | 5.5kg |
| Product Dimension | 38.1×27.5×7 cm |
| Packing size | 47×44cm×18 |
| Accessories | Power adapter, WIFI antenna , user manual |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 3 years warranty |
| Certificates | CE,FCC,RoHS |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
