Full IP65 Waterproof LCD Display , Resistive Touch Display 7 Inch Size

Brand Name:	Shinho
Model Number:	SL07W
MOQ:	1 piece
Price:	Negotiation
Payment Terms:	T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS

Product Name:

Full IP65 Touch Display

Panel Size:

Resolution:

1024*600

Aspect Ratio:

16:9

Contrast Ratio:

400:1

Brightness:

1000nits, Outdoor

Touch Type:

Resistive Touch 4 Wire

Signal Ports:

HDMI

Highlight:

touch screen display monitor

resistive touch screen monitor

Product Description

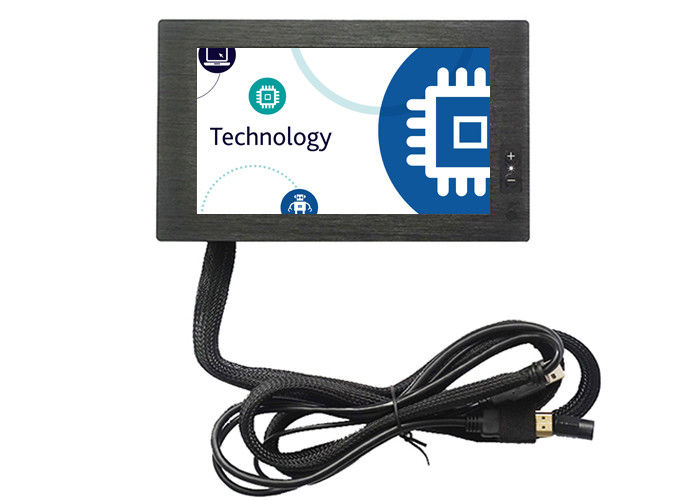

FULL IP65 Waterproof LCD Monitor 7 Inch Resistive Touch Display

Features

This LCD monitor featuring 4 wire resistive touch screen is an economical industrial monitor choice. It comes with 7" industrial level LCD panel. Resolution is 1024*600. With 1000 nits brightness and FULL IP65 water resistant rate, you don't need to have any concern to use it outside. What's more, it has waterproof speaker on the back case, and buttons on the front cover to adjust brightness.

Advantages

1. Industrial A LCD panel, high luminance 1000cd/m², sunlight readable

2. FULL IP65 waterproof

3. Robust and durable Aluminum alloy front cover and metal rear cover

4. Adopt high precision industrial 4 wires resistive touch screen, high precision, durable, anti-interference.

5. With button on the bezel, to adjust the brightness.

6. With waterproof speaker on the back case.

7. Support wide voltage: 12-24V DC input.

Applications

Self-service vending machine

Railway station

Truck

Payment machine

Industrial area

Specification

Model:SL07W
LCD panel
Panel size	7"
Resolution	1024*600
Aspect ratio	16:9
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits,sunlight readable
Contrast ratio	400:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	4 wire resistive touch
Touch Interface	USB (RS232 optional)
Touch response time	<8ms
Luminousness	75-85%
Surface Hardness	3H
Working Life	>35 million times
Touch options	(PCAP touch optional)
Singal Ports
VGA	optional
HDMI	1×HDMI
DVI	optional
AV	optional
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 12V-24V wide voltage
Power consumption	10W
Enclosure
Material	Aluminum alloy bezel+High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA mounting	75×75mm
IP-grade	IP65
Operating Environment
Temperature Range	operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity	operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight	1.3kg
Gross weight	2kg
Product Dimension	20×12×3.5 cm
Packing size	33.0×21.6×8.7 cm
Accessories	Power adapter, touch pen , touch driver
Other
Mounting (options)	1) provide wall brackets for wall-mounting, VESA 75×75mm
Mounting (options)	2) provide stable metal holder to support the monitor
Warranty	1 year
