Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Model Number:
SHN3

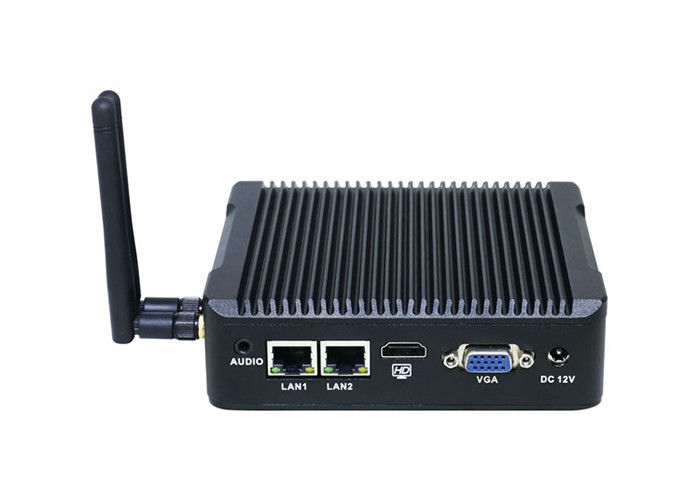

Low Power Consumption Industrial Mini PC with 2 LAN 2 COM WIFI
Features
1. Intel Celeron J1900 quad core,2.0GHZ, fanless CPU
2. 1*VGA+1*HDMI+2*LAN+2*COM+3*USB2.0+1*USB3.0
3. 2G RAM+32G SSD
4. High quality pure aluminum case
5. 1*MSATA,1*mini-PCIE,support wake on lan
6. 2*RTL8111E 1000M lan card,support wake on lan
7. DC-IN 12V power supply and AC power adapter
Application
Education
POS machine
Railway station
Building
Electronic storage
Home office
Kiosk
Industrial area
Specification
| Model | SHN3 |
| Processor | Adopt Intel Bay trail-D quad core J1900 (22nm, 2.0GHz, 2MB second Cache) |
| Chipset | Adopt Intel express chipset |
| RAM | 2G (can up to 8G) |
| Display port | Integrated Intel HD Graphic card, Support 1*VGA |
| Expansion port | 2*Mini-PCIE, support full-size MSATA and half-size WiFi |
| Storage | 1* MINISATA, (N3B can support extra 1*SATA) |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2* Realtek 8111E Lan, support wake on lan |
| I /O | 2* RJ-45 |
| Built-in I/O | 1 * FP1 |
| BIOS | AMI 64M DPI Flash ROM |
| WDT | Support hardware reset (256 level,0~255 sec) |
| Power supply | DC-12V |
| Temp | -20℃～60℃ |
| Humidity | 0～95% relative humidity, non-condensing |
| Dimension | 134*126*38 mm / N3A , 134*126*48mm / N3B |
