Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Model Number:
SHN5
Fanless J1900 CPU Rugged Industrial Mini PC With DP 2 Lan 6 USB 1 RS232
Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.
Features
1. Intel Celeron J1900 quad core,2.0GHZ, fanless CPU
2. 1*DP+2*HDMI+2*LAN+1*COM+4*USB2.0+2*USB3.0 (2*COM optional)
3.AMI 64MB Flash ROM,Support RPL/PXE diskless boot,wake on lan,electricity boot,WDT
4. Standard configuration: 2G RAM+32G SSD
5. High quality pure aluminum case
6. 1*MSATA,1*mini-PCIE,support WIFI and bluetooth
7. 2*RTL8111E 1000M lan card,support wake on lan
8. DC-IN 12V power supply and AC power adapter
Rugged PCs ideal for applications like
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
Specification
| Model | SH N5 |
| Processor | Adopt Intel Celeron quad core N3160 (14nm, 1.6GHz, 2MB second Cache, turbo boost 2.24GHZ ) |
| Chipset | Adopt Intel express chipset |
| RAM | 1*SODDR3L 1.35V (can up to 8G) |
| Display port | Integrated Intel HD Graphic card, Support 1*VGA |
| Expansion port | 2*Mini-PCIE, support full-size MSATA and half-size WiFi |
| Storage | 1* MINISATA, (N5B can support extra 1*SATA) |
| Audio | Integrated Realtek ALC662 6 sound channel |
| Network | 2* Realtek 8111E Lan, support wake on lan |
| I /O |
2* RJ-45 1* 12V DC input 1* DP 2* HDMI 2 *USB3.0 4 *USB2.0 1 *Power switch 1 *RS232 COM 1 *Audio |
| Built-in I/O |
1 * FP1 1 * JSATA Port, 1*SATA 1 * MINI_PCIE for WiFi 1 * Mini-SATA 1 * SODIMM |
| BIOS | AMI 64M DPI Flash ROM |
| WDT | Support hardware reset (256 level,0~255 sec) |
| Power supply | DC-12V |
| Temp | -20℃～60℃ |
| Humidity | 0～95% relative humidity, non-condensing |
| Dimension | 134*126*38 mm / N5A , 134*126*48mm / N5B |

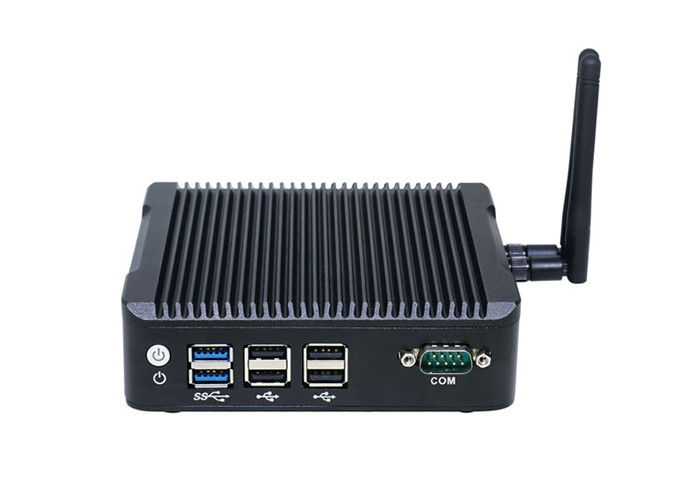

Pictures
Drawing
