Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE,FCC,RoHS
Model Number:
SC19W 2
Contact Us
Video

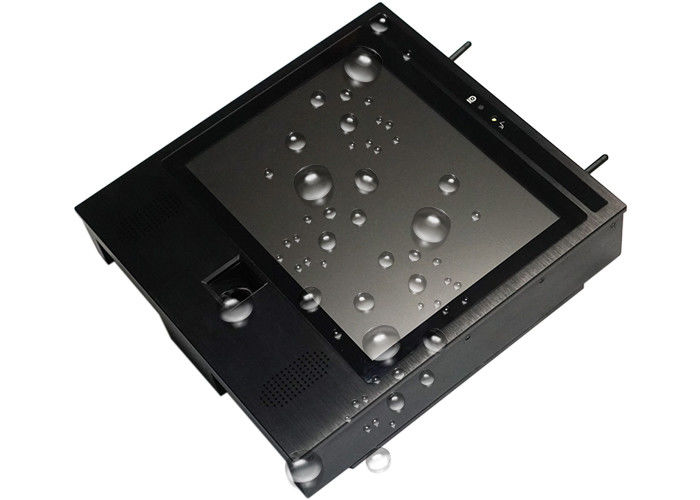

19 Inch Build In Battery 1000 Nits High Brightness IP65 Panel PC For Outdoor Application
Features
1. Full sealed and fanless design , IP65 waterproof .
2. 19 inch Industrial LCD panel, 4:3 square screen, 1000cd/m² sunlight readable , with a light sensor in front bezel ,it can auto adjust brightness. energy-saving.
3. High sensitive 10-points PCAP touch panel , cover with 3mm tempered glass, vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Wireless :4G/3G + WIFI .
6. 5 million pixels webcam in front bezel.
7. Optical fingerprint reader built in. (The picture's fingerprint is customized for customer,customer provided it).
8. Built-in Battery, 9000mah, keep the PC running for 3 hours in case power cut.
9. Access to SSD/ Sim Card by removable panel.
10. waterproof I/O cable included.
19'' Built in battery touch panel PC Applications
Time And Attendance
construction site
high-speed rail station
light rail
Subway
some other outdoor applications
Advantages
1. J1900 CPU,fanless,low power consumption. noiseness.
2. -10C to +60°C Wide temperature support.
3. Various Interfaces,1×Power AC, 2×LAN, 3×USB, other connectors also can be customized.
4.RAM:2G ,4G,8G optional,SSD:SSD: 16GB,32GB,64GB,128GB,256GB, HDD: 500GB,1TB optional.
5. Touchscreen Type:10-points Project Capacitive. high sensitive.
6. Operation System:Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
Specification
| Model:SC19W 2 | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 16GB,32GB,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Ethernet | 2×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless | 4G/3G + WIFI |
| Webcam | 5 million pixels webcam |
| Fingerprint Reader | Lumidigm V310 ( optional ) |
| Built-in Battery | 9000mah, keep the PC running for 3 hours in case power cut , uninterruptible power supply |
| I/O Interface | 1×Power AC, 2×LAN, 3×USB |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 1000 cd/m², with light sensor , auto adjust brightness |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10-points Project Capacitive Touch Panel |
| Tempered glass cover | 3mm |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50million times |
| Touch options | ( 4/5 wires resistive touch, IR ,SAW touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
| Color | White, Black, Silver , color can be customized |
| VESA mounting | 100×100mm |
| IP-grade | Full IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 12kg |
| Gross weight | 16kg |
| Product Dimension | TBD |
| Packing size | 64×45×19 cm |
| Accessories | Power adapter, embedded screws |
| Other | |
| Warranty | 1 year warranty |
