Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE,FCC, RoHS
Model Number:
SL15W
Contact Us

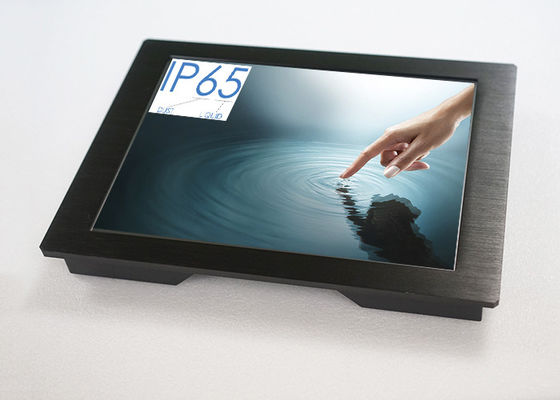

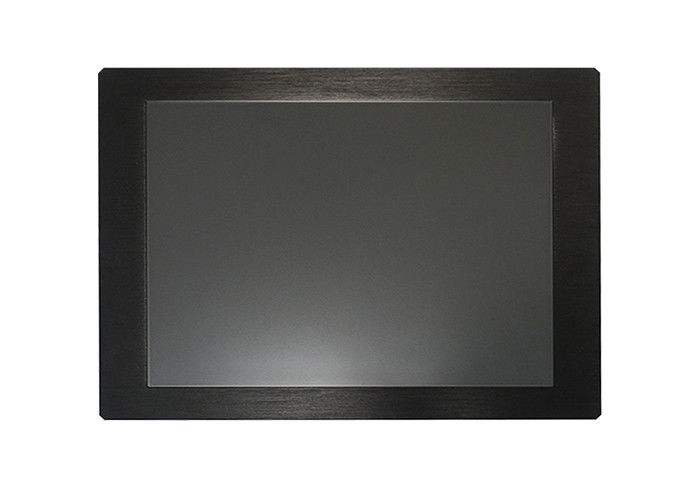

Touch monitor is an ideal replacement for less capable HMI control screens. The fully sealed high strength rolled steel housing case makes it an ideal plug-and-play solution for high pressure humid water. Fully fanless and IP65 rated waterproof design, you can confidently place this waterproof monitor into even the most demanding working environment. The monitor includes on-screen display (OSD) controls on the back of the unit for quick adjustment of your display settings.
Feature
1. 15" TFT panel with LED backlight.
2. IP grade is IP65 waterproof and dustproof with fully enclosed Fanless Design.
3. HDMI Inputs, other VGA or DVI can be made customization.
4. M12 Metal I/O Connectors.
5. Touch panel is 5 wire resisitive touchscreen.
Application
Field service
Law enforcement
Defense
Public sector
Boats/Ships
Security Turnstile
Stadium
Sporting ground
Other outdoor applications
Specifications
| Model:SL15W | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( PCAP touch optional) |
| Singal Ports | |
| HDMI | 1×HDMI |
| VGA | optional |
| DVI | optional |
| AV | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | aluminium alloy bezel +High strength cold rolled steel back enclosure |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 100×100 mm |
| Ingree Protection | IP65 |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | operating: 10% to 90% , storage :5% to 90% |
| Packing Details | |
| Net weight | 5kg |
| Gross weight | 6kg |
| Product Dimension | 37.8×28.4×4.5cm |
| Packing size | 47×38×15 cm |
| Accessories | Power adapter, HDMI/USB cable, 10m waterproof cable |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100 mm |
| 2) provide stable metal holder to support the monitor | |
| Warranty | 3 years warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
Signal Ports
