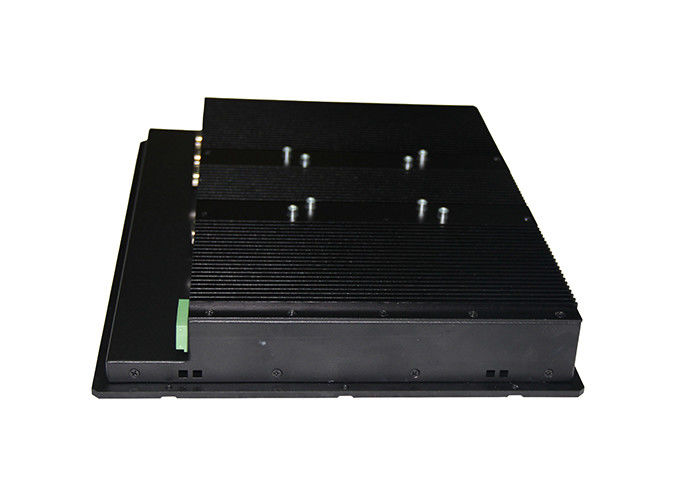

Rack Mount Industrial Panel Computer / Panel PC Touch Screen CPU Core I3-2350M
Product Details
| Product Name | Industrial Computer | CPU | Intel Core I3-2350M 2.3GHz, Dual Core |
|---|---|---|---|
| RAM | 2G DDR3 | Hard Disk | 32G SSD |
| Touchscreen Type | 5 Wire Resistive Touch | Resolution | 1024*768 |
| Aspect Ratio | 4:3 | Brightness | 400 Nits |
| High Light | industrial panel pc,embedded industrial pc |
||
Product Description
15 Inch Rack Mount Resistive Touch Industrial Computer CPU Core I3-2350M
Features
1) 15 inch industrial LCD Panel
2) 5 wire Resistive Touch
3) Intel Core I3-2350M 2.3GHz, dual core (I5-3317U/I7-2637M optional)
4) RAM 2G DDR3
5) SSD 32GB
6) Resolution 1024*768 (4:3)
7) Brightness 400nits
15" Industrial PC Applications
welding industry
numerical control device
industrial automation
supervisory control
industrial control cabinet
human Machine Interface
Mounting Options
Embedded mounting screws (Standard)
Wall mounting brackets (Optional)
Desk stand holder (Optional)
Specification
| Model:SC15 | |
| PC | |
| CPU | Intel Core I3-2350M 2.3GHz, dual core (I5-3317U/I7-2637M optional) |
| Chipset | Intel HM65 |
| Memory | 2G DDR3 (4G,8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 4×USB 2.0, 3 x COM RS232 |
| 1×VGA/HDMI/2×RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-24V wide voltage optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Silver , Black, white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 4kg |
| Gross weight | 5.5kg |
| Product Dimension | 37.5x28.5x5.1cm |
| Packing size | 47x43x18cm |
| Accessories | Power adapter, embedded screws, driver CD, touch pen |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Drawing
