Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHS
Model Number:
SC08
Contact Us

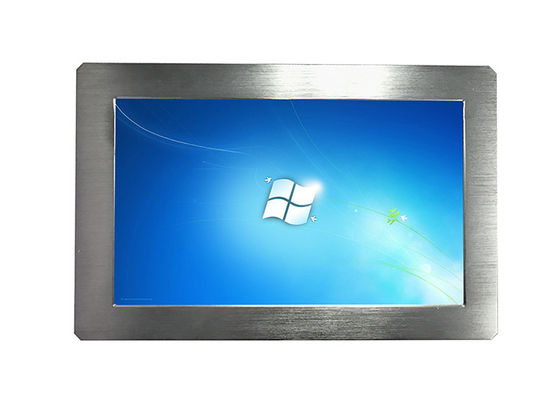

8.9 Inch Fanless Embedded Touch Panel PC Celeron J1900 Industrial
Overview
This is a durable and powerful industrial panel PC. 8.9" 1024x600 300nits TFT LCD with resistive touch screen, three USB2.0, one USB3.0, one HDMI, one VGA, and two RJ45 Lan port. This panel PC is suitable for a wide range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.
Features
8.9" 1024x600 300nits TFT LCD with resistive touch screen
Intel® Celeron J1900 processor, quad core, 2.0GHz, fanless
8.9" Industrial PC Applications
Building
Home automation
Industrial field
Vehicle
Gas station
Specification
| Model:SC08 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 3×USB 2.0, 1×USB 3.0, (4 x COM RS232 optional) |
| 1×VGA/HDMI/2×RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 8.9" |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 nits |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 70°/70°/70°/70° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 9-24V wide voltage |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy CNC enclosure |
| Color | Silver, Black, white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2.5kg |
| Gross weight | 3kg |
| Product Dimension | 23.9x15.6x3.9cm |
| Packing size | 40*33*15cm |
| Accessories | Power adapter, embedded screws, driver CD, touch pen |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Drawing
