18.5" LCD Industrial Panel PC 5 Wire Resistive Touch Screen Celeron J1900 Processor
Product Details
| Product Name | LCD Industrial Panel PC | CPU | Intel® Celeron J1900, Quad Core, 2.0GHz, Fanless |
|---|---|---|---|
| RAM | 2G DDR3 | Hard Disk | 32G SSD |
| Touchscreen Type | 5 Wire Resistive Touch | Resolution | 1366*768 |
| Aspect Ratio | 16:9 | Brightness | 400 Nits |
| High Light | industrial panel pc,panel mount computer |
||
Product Description
18.5" LCD Industrial Panel PC With Touch Screen Celeron J1900 Processor
Introduction

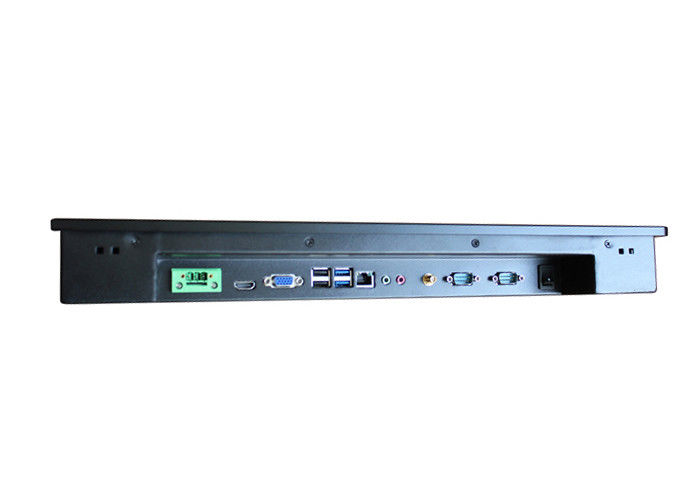

This is a heavy duty and powerful industrial panel PC. 18.5" 1366*768 400nits TFT LCD with 5 wire resistive touch screen, two USB2.0, two USB3.0, two COM RS2322, one HDMI, one VGA, and one RJ45 Lan port. This panel PC is suitable for a large range of industrial and commercial applications in the market, such as POS, Kiosk, transportation and building automation systems.
Features
18.5" 1366x768 400nits TFT LCD with 5 wire resistive touch screen
Intel® Celeron J1900 processor, quad core, 2.0GHz, fanless
2G DDR3 RAM, 32G SSD hard drive
Intel ValleyView SSA-CUnit Chipset
18.5" Industrial PC Applications
Factory automation
Machine Building Industry
Metro station
Intelligent transportation
Security application
Oil and Gas Monitoring
Specification
| Model:SC185 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB, 256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0, 2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/1×RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 18.5" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | ( capacitive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-24V wide voltage optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy bezel+High strength cold rolled steel back case |
| Color | Silver , Black, white, color can be customized |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20°C to 70°C |
| Relative humidity | 10%~90% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5kg |
| Gross weight | 4.5kg |
| Product Dimension | 48.5x30.2x5.8cm |
| Packing size | 64x45x19cm |
| Accessories | Power adapter, embedded screws, driver CD, touch pen |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
