Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHS
Model Number:
SC19
Video
Video
Video

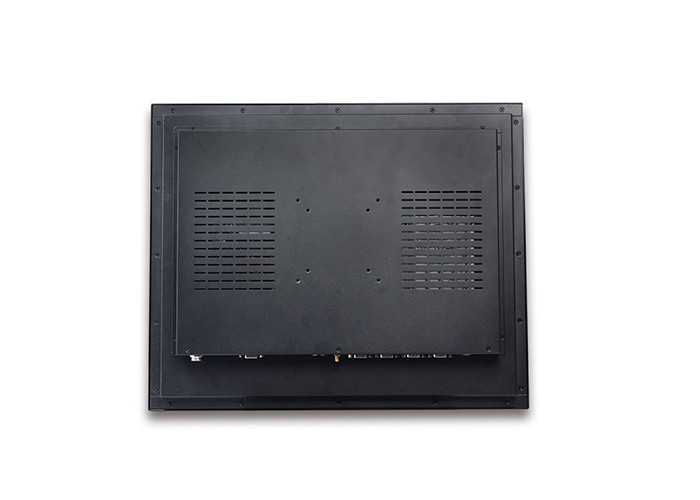

19" RFID Touch Screen Panel PC With Rugged Aluminium Enclosure
Introduction
This is a durable 19" Flat Bezel Touchscreen Panel PC based around Intel® Celeron J1900 processor technology. The system delivers high performance housed in a state of the art mechanical package incorporating Projected Capacitive 10 points Touch Technology with a borderless flat surface design. The bezel offers IP65 wateproof and dustproof, thus making it an attractive option for various kiosk/ multimedia applications, alongside more traditional industrial place, too.
Features
Applications
Proudction line auto control
Supply chain management and application
Human Machine Interface (HMI)
Railway station
Attendance check machine
Logistics management system
Security Turnstile
Specification
| Model: SC19 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, ( Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 1×USB 2.0,1×USB 3.0, 4 x COM RS232, 2 x RJ45 |
| 1×VGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 19" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.5kg |
| Gross weight | 8.5kg |
| Product Dimension | TBD |
| Packing size | 74×45×18 cm |
| Accessories | Power adapter,embedded screws,user manual,warranty card |
| Other | |
| Mounting (options) | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Customization | RFID |
| Warranty | 1 year warranty |
| Certificates | CE,FCC,RoHS |
Drawing
