Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHs
Model Number:
SC08W
8'' 1024*768 High Resolution Full IP65 Waterprof Stainless Steel Panel PC
Features:
1. Full material is sturdy and durables stainless steel.
2. 8 inch industrial LCD panel with 1024*768 high resolution,wide viewing angle, high nits and true color.
3. Adopt 5 wires resistive touch screen,high precision, durable, anti-interference.
4. Mainboard is high performance with 7x24 continuous operation.
5. Full sealed and fanless design with full IP67 waterproof and dustproof.

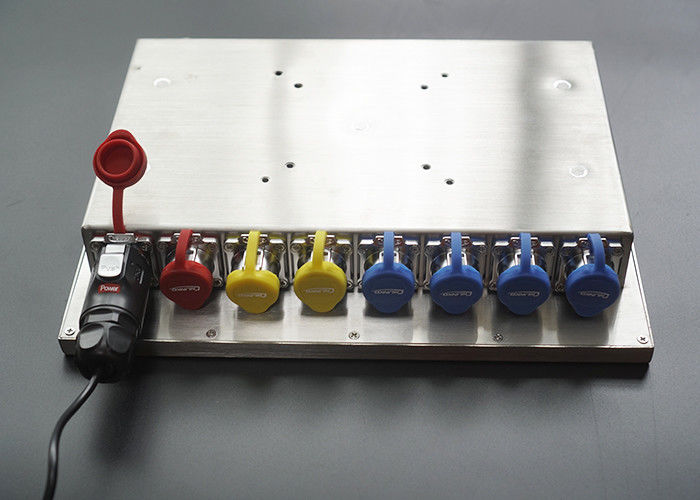

6. Sealed I/O with cable set included.
Advantages :
1. CPU is Intel® Celeron J1900 , quad core , 2.0GHz, fanless
2. Standard confirguration is 2G RAM,32G SSD,other confirguration is availalble.
3. Working temperature is wide range: -10C to +60°C.
4. Various signal ports, 2*USB+1*LAN+1*RS232, more other waterproof ports can be customized.
5. The buttons can be customized face back.
Applications
food & beverage processing
meat/poultry processing
pharmaceutical processing
clean room application
Marine Logistics
Wind Power Automation
Vessel
Outdoor kiosk
Specification
| Model:SC08W | |
| PC | |
| CPU | Intel® Celeron J1900 , quad core , 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, (4G ,8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2*USB+1*LAN+1*RS232 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 8" |
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable (400 nits optional) |
| Response time | 10ms |
| Contrast ratio | 800:1 |
| View angle | 80/80/80/80 (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 4 wires resistive touch screen |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >35 million times |
| Touch options | ( 10 point capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-36V wide voltage optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | stainless steel case |
| Color | Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 3.5KG |
| Gross weight | 4.5KG |
| Product Dimension | TBD |
| Packing size | 40×33×16 cm |
| Accessories | Power adapter,waterproof RS232/LAN/USB cable,power cord |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Certificates | CE,FCC,RoHs |
| Warranty | 13 months warranty |
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
