Place of Origin:
Shenzhen , China
Brand Name:
Shinho
Certification:
CE , FCC , RoHS
Model Number:
SC173

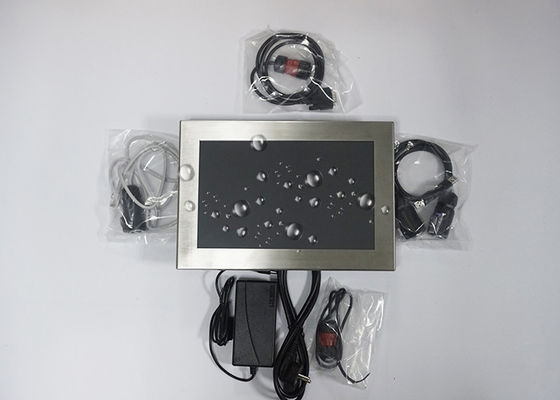

Heavy Duty 17.3 Inch Widescreen IP65 Waterproof Stainless Steel Panel PC
The unit is equipped with 6-side IP65 protection. With IP65 waterproof waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer.
Which make them highly suited in Biotech/Chemical/Phaemaceutical/Food & Baverage industry/livestock/chemical/mining/petro and factory automation or any other industrial applications.
Features
1. 17.3 inch industrial LCD Panel.
2. CPU: Intel® celeron J1900,quad core,2.0GHz.
3. 2G RAM,32G SSD is the standard confirguration.
4. Stainless Steel Enclosure.
5. IP-65 Sealed enclosure including I/O
6. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
7. High bright 1000 nits sunlight readable.
Applications
Traffic Control System
Food Factory
beverage processing
Bus Ticket Machine
consumer packaged goods industries
Predictive Maintenance Solutions
Transportation
Waste Water Management
Self-recovery machine
Specification
| Model:SC173W | |
| PC | |
| CPU | Intel® celeron J1900, 2.0GHz, quad core, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3, (2G ,8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2*USB+1*LAN+1*RS232+1*RS422 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 17.3" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits,(1000 nits,sunlight readable optional) |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80/80/80/80 (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 point capacitive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-36V wide voltage optional) |
| Power consumption | ≤25W |
| Enclosure | |
| Material | stainless steel case |
| Color | Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 8KG |
| Gross weight | 10KG |
| Product Dimension | TBD |
| Packing size | 53×46×19 cm |
| Accessories | Power adapter,waterproof RS232/LAN/USB cable,power cord |
| Other | |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Certificates | CE,FCC,RoHs |
| Warranty | 13 months warranty |
