Thin Bezel Capacitive Embedded Touch Panel PC With 1440*900 Resolution

Place of Origin Shenzhen , China
Brand Name Shinho
Certification CE , FCC , RoHs
Model Number SC19
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 1PC/Carton Weight: 8KG/PC, Packing size: 59×49×18 cm
Delivery Time 7-9 working days
Payment Terms T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability 5000 Piece/Pieces per Month
Product Details
Size 19 Inch CPU Intel® Celeron J1900 , Quad Core , 2.0GHz, Fanless
Touch Type Project Capacitive Touch (10 Points) Resolution 1440*900
Aspect Ratio 16:10 DC 12 V DC
Lan 2 LAN Port COM 6 X COM RS232,1 X COM RS485
High Light

industrial panel pc

,

panel mount computer

Leave a Message
Product Description

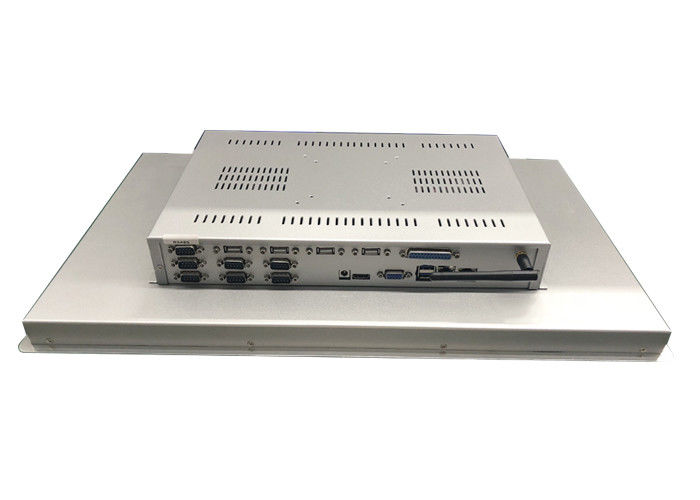

Thin Bezel Capacitive Touch Panel PC With 6 RS232 1 RS485 2 LAN 1 LPT 6 USB



Features:

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof .


2. Industrial LCD panel, wide viewing angle, high nits, true color.


3. Adopt multi-points PCAP touch panel , high sensitive and fast-response.


4. High performance motherboard, 7x24 continuous operation.



5. J1900 fanless CPU,2G RAM,32G SSD.


6. Ultra-thin front bezel 3mm, ideal for embedded mounting.


7. With 6 COM RS232,1 RS485.4 USB2.0+2 USB 3.0,1 HDMI,1 LPT,1 VGA,2 LAN,1 Wifi.


Application:



Control CNC machine



indoor livestock equipment



automatic vending machines



Self-service medical ticketing machine



vending machine



parking management system



sorting machine



self serve kiosk



self service postal locker



intelligent transport system



Accessories



Embedded  screws



CE ,FCC passed Power adapter



Power cord



User manual



Warranty card




Specification



Model:SC19
PC
CPU Intel® Celeron J1900 , quad core , 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3, ( Max. 8G)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G,128GB,256GB
HDD: 500GB,1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 4×USB 2.0,2×USB 3.0, 6 x COM RS232,1 x COM RS485
1×VGA/HDMI/Audio OUT/MIC IN/1×LTP/POWER DC/ 2× RJ45
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size 19"
Resolution 1440*900
Aspect ratio 16:10
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options ( 5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver , Black, white, color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 7.5kg
Gross weight 8kg
Product Dimension 48.6×33.2×5.92cm
Packing size 59×49×18 cm
Accessories Power adapter,embedded screws,user manual,warranty card
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
