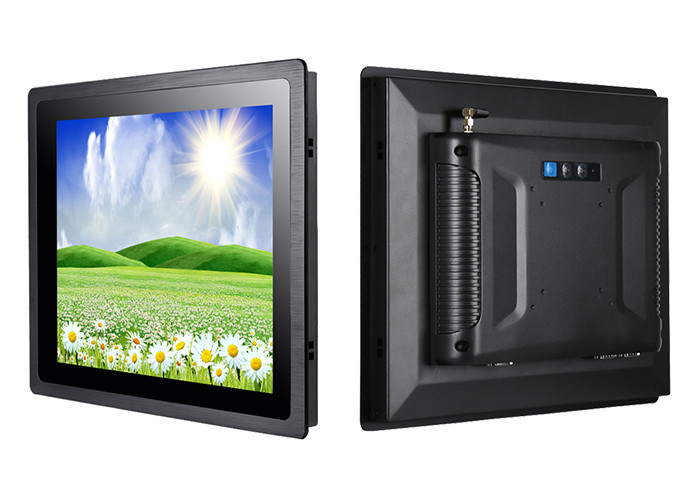

17 Inch Embedded Touch Panel PC Linux Front Bezel IP65 Water Resistant
Product Details
| Product Name | 17 Inch Embedded Touch Panel PC Linux | CPU | Intel Celeron J1900, Quad Core, 2.0GHz, Fanless |
|---|---|---|---|
| RAM | 2GB DDR3 | Hard Disk | 32GB SSD |
| Resolution | 1280*1024 | Aspect Ratio | 4:3 |
| Brightness | 300 Nit | Feature | Front Bezel IP65 Water Resistant |
| High Light | industrial panel pc,embedded industrial pc |
||
Product Description
17 Inch Embedded Touch Panel PC Linux Front Bezel IP65 Water Resistant
Features
- Front bezel 3mm thickness, perfect for panel mount.
- Fully sealed design, dustproof
- Front panel IP65 water resistant
- Aluminum alloy enclosure, good performance of heat dissipation.
- 4 COM optional, RS232/RS422/RS485 optional.
Specifications
| Model:SC17 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2GB DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32GB SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 17" |
| Resolution | 1280*1024 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver |
| VESA mounting | 75×75mm/ 100×100mm |
| IP grade | Front bezel IP65 water resistant |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.7kg |
| Gross weight | 8.2kg |
| Product Dimension | 418.6x380x63mm |
| Packing size | 530x470x180mm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Applications
Self-service Library
Hotel check-in kiosk
Laser cutting machine
Agricultural automation
Quality inspection system
Drawing
More detailed picture
