Place of Origin:
Shenzhen, China
Brand Name:
Shinho
Certification:
CE, FCC, RoHS
Model Number:
SC08

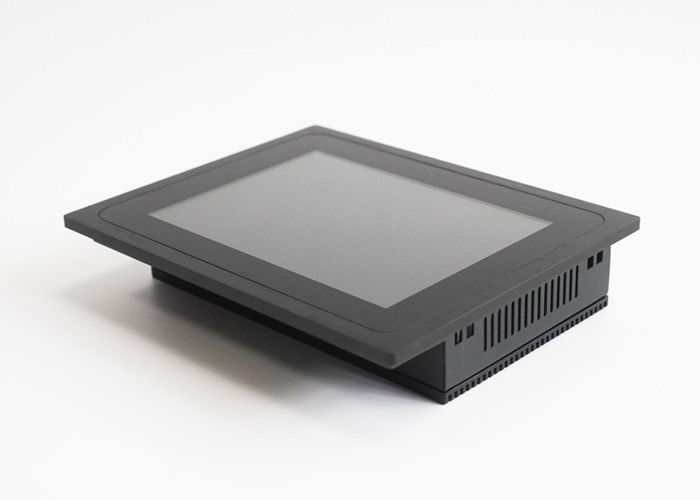

8 Inch 1000 Nit High Brightness Industrial Panel PC For Sunny Conditions
Features
8" high definition industrial level LCD panel
1000 nits high brightness, perfect for sunny conditions
Front panel IP65 waterproof
PCAP project capactive touch screen
CPU Intel Celeron J1900, quad core, 2.0GHz, fanless.
2GB DDR3, 32GB SSD
Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, Debian, etc.
With open frame mounting brackets
Specifications
|
Model:SC08 |
|
|
PC |
|
|
CPU |
Intel® Celeron J1900, quad core, 2.0GHz, fanless |
|
Chipset |
Intel ValleyView SSA-CUnit |
|
Memory |
2GB DDR3 (4G, 8G optional) |
|
Hard Drive Capacity |
32GB SSD |
|
Hard Drive Optional |
SSD: 64G,128GB, 256GB |
|
HDD: 500GB, 1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1×Realtek RTL 8111E Gigabit Ethernet controller |
|
Wireless Network |
WIFI |
|
I/O Interface |
6x USB, 2x COM RS232 |
|
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC |
|
|
Operation System |
Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
|
LCD panel |
|
|
Panel size |
8" |
|
Resolution |
1024*768 high definition |
|
Aspect ratio |
4:3 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
1000 nits high brightness, work well in sunny conditions |
|
Response time |
5ms |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Project Capacitive Touch (10 points) |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Luminousness |
90% |
|
Surface Hardness |
7H |
|
Working life |
>50 million times |
|
Touch options |
( 5 wire resistive touch, IR touch optional) |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤45W |
|
Enclosure |
|
|
Material |
Aluminum Alloy |
|
Color |
Black |
|
VESA mounting |
100x100mm |
|
IP grade |
Front panel waterproof IP65 |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -20 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Net weight |
2.5kg |
|
Gross weight |
3kg |
|
Product Dimension |
222*182*47mm |
|
Packing size |
330*330*130mm |
|
Accessories |
Power adapter, embedded screws, user manual, warranty card |
|
Other |
|
|
Mounting (options) |
open frame |
|
embedded mounting screws |
|
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, FCC, RoHS |
Applications
Parking lot manage system
Charger station
Petroleum dispenser machine
Accesse control system
Marine environment
Industrial automatic machine
More detailed pictures
