Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth

Place of Origin Shenzhen , China
Brand Name Shinho
Certification CE , FCC , RoHS
Model Number SC24
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 1pc/carton weight: 22 kgs/pc packing size: 73x54x23cm, packed with wooden box
Delivery Time Shipped in 15 working days after payment
Payment Terms T/T, Paypal, L/C, D/A , D/P, Western Union, MoneyGram
Supply Ability 5000 Piece per Month
Product Details
Product Name 24'' Widescreen IP65 Waterproof Stainnless Steel Panel PC CPU Intel® Core, I3-6100U, 2.30 GHz, Dual Core, Fanless
RAM 8G DDR3 Hard Disk 256G SSD
Touchscreen Type 5 Wire Resisitive Touch Resolution 1920*1080
Aspect Ratio 16:9 IP Grade FULL IP65 Waterproof
Material Stainless Steel I/O Interface 3x USB, 1 X Lan, 1 X POWER DC
High Light

industrial panel mount pc

,

fanless all in one pc

Leave a Message
Product Description

Widescreen Full sealed IP65 Waterproof Stainless Steel Panel PC With Wifi Bluetooth




Features



1. IP65 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.


2. 24'' industrial LCD panel, wide viewing angle, high nits, true color. 1920*1080 high resolution.


3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. it can touch with gloves and dirty hands.


4. High performance motherboard, 7x24 continuous operation.


5. Full sealed and fanless design, full IP65 waterproof.


6. 1000 nits, manual brightness. With 2 buttons: 1 button to turn up the light and another button to turn down the light.


7. Built in Wifi and Bluetooth which hidden inside.



8. I/O Interface: 3x USB, 1 x Lan, 1 x POWER DC.




Specification



Model:SC24
PC
CPU Intel® Core, I3-6100U, 2.30 GHz, dual core, fanless
Memory 8G DDR3 (2G, 4G optional)
Hard Drive Capacity 256G SSD
Hard Drive Optional SSD: 32G, 64G, 128GB
HDD: 500GB, 1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
Bluetooth 4.0
I/O Interface 3x USB, 1 x Lan, 1 x POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size 24"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits, sunlight readable
Brightness control Membrane switch
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 5 wire resistive touch
Touch Interface USB (RS232 optional)
Touch response time <8ms
Luminousness 90%
Surface Hardness 3H
Working Life >35 million times
Touch options (capacitive touch, IR touch optional)
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material stainless steel
Color Silver
VESA mounting 100x100mm
IP grade Full IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 14kg
Gross weight 22kg
Product Dimension 58.89x35.61x5.8cm
Packing size 73x54x23cm
Accessories Power adapter, IP65 waterproof USB cable/Lan cable, power cord.
Other
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificate CE, FCC, RoHS



Pictures

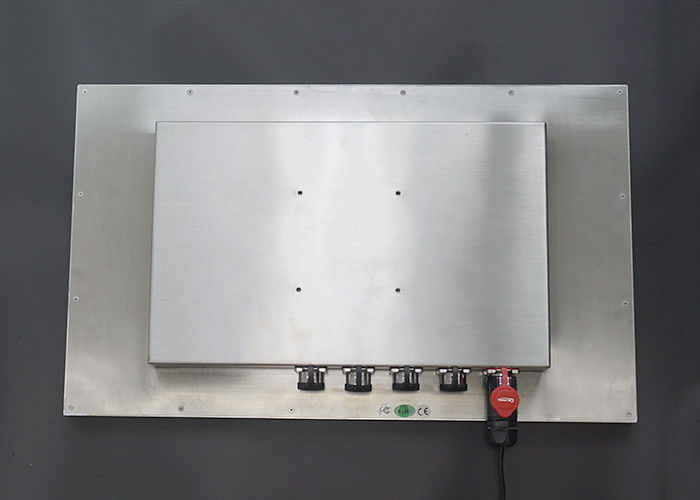

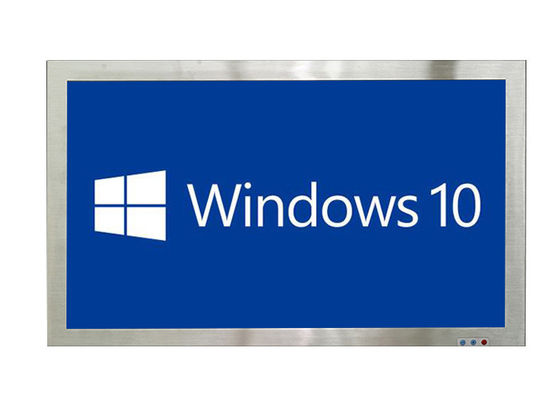

Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth 0

Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth 1

Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth 2

Drawing



Full Sealed Industrial Touch Screen PC IP65 Stainless Steel With Wifi Bluetooth 3



Applications


Process control



Marine & Naval



Energy



Oil



Gas



Food & Baverage industry



Mining



Petro


Traffic Control System



Waste Water Management
