Place of Origin:
Shenzhen,China
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SL101
Contact Us

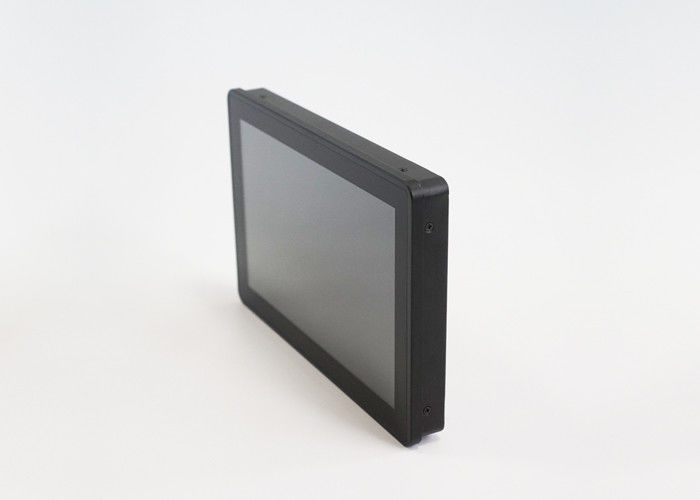

10.1 Inch Widescreen USB3.0 Powered LCD Monitor Capacitive Touch Screen
Features
10.1 inch Industrial LCD panel, wide viewing angle, high nits, true color
1280*800 widescreen
400nits brightness (1000nits optional)
Adopt multi-points PCAP touch panel, high sensitive and fast-response
Support video signal, power and touch over a single USB3.0 cable
High performance mainboard, 7x24 continuous operation
Support wall mounting, embedded mounting, desk stand mouting, etc
Specifications
|
Model: SL101 |
|
|
LCD panel |
|
|
Panel size |
10.1" |
|
Resolution |
1280*800 |
|
Aspect ratio |
16:10 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
500 nits |
|
Contrast ratio |
800:1 |
|
View angle |
85°/85°/85°/85° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
Project Capacitive Touch (10 points ) |
|
Surface Hardness |
7H |
|
Luminousness |
90% |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
2ms |
|
Working Life |
>50 million times |
|
Touch options |
(5 wires restive touch, IR touch optional) |
|
Signal Ports |
|
|
USB |
1xUSB3.0 (support video signal, power, and touch over a single USB3.0 cable) |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
|
Support OS |
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V, 50-60Hz |
|
Working voltage |
DC 12V |
|
Power consumption |
≤15W |
|
Enclosure |
|
|
Material |
aluminium alloy bezel+High strength cold rolled steel back case |
|
Color |
Black, Silver |
|
VESA mounting |
100x100mm |
|
IP grade |
Front panel IP65 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -20 to 80°C |
|
Relative humidity |
operating: 10% to 80%, storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
1kg |
|
Gross weight |
1.5kg |
|
Product Dimension |
25.7*17.5*2.75cm |
|
Packing size |
33*30*10cm |
|
Accessories |
USB3.0 cable |
|
Other |
|
|
Mounting |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificates |
CE, FCC, RoHS |
Applications
Electric Car DC charger
Transaction Kiosks
Car parks management
Access control
Ticketing systems
Machine vending reverse recycled
Smart Home
Medical testing equipment
Electrical control cabinet
Pictures
Drawing
