Industrial Stainless Steel Panel PC 12 Inch Waterproof IP67 5 Wire Resisitive Touch
| Place of Origin | Shenzhen , China |
|---|---|
| Brand Name | Shinho |
| Certification | CE , FCC , RoHS |
| Model Number | SC121 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Packaging Details | 1pc/carton weight: 7kgs/pc, packing size: 43x38x18cm |
| Delivery Time | Shipped in 10-15 working days after payment |
| Payment Terms | T/T, Paypal, L/C, D/A , D/P, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces per Month |
Product Details
| Product Name | 12 Inch Waterproof IP67 Industrial Panel PC | CPU | Intel® Celeron J1900, Quad Core , 2.0GHz, Fanless |
|---|---|---|---|
| RAM | 2GB DDR3 (4GB, 8GB Optional) | Hard Disk | 32G SSD (64GB, 128GB, 256GB Optional) |
| Touchscreen Type | 5 Wire Resisitive Touch | Resolution | 1024*768 |
| Aspect Ratio | 4:3 | IP Grade | Waterproof IP67 |
| Material | With Complete Stainless Steel Housing | I/O Interface | 3xUSB, 1xRS232, 1xRJ45, 1xPOWER DC |
| High Light | industrial panel mount pc,fanless all in one pc |
||
Product Description
12 Inch Waterproof IP67 Industrial Panel PC With Complete Stainless Steel Housing
Features
This 12.1" industrial panel PC comes with complete stainless steel housing, which is anti-rust and anti-corrosion. Fully sealed with IP67 waterproof, it's the best choice for wet locations such food processing line, car washing shop, agricultural industry, etc. We provide the IP67 I/O connectors for each panel PC. We can produce the products according to your requirements.
Specification
|
Model:SC121 |
|
|
PC |
|
|
CPU |
Intel® Celeron J1900, quad core, 2.0GHz, fanless |
|
Chipset |
Intel ValleyView SSA-CUnit |
|
Memory |
2Gb DDR3 (4Gb, 8Gb optional) |
|
Hard Drive Capacity |
32Gb SSD |
|
Hard Drive Optional |
SSD: 64Gb, 128GB, 256GB |
|
HDD: 500GB, 1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1xRealtek RTL 8111E Gigabit Ethernet controller |
|
Wireless Network |
WIFI optional |
|
I/O Interface |
3xUSB3.0, 1xCOM RS232 |
|
1xRJ45, 1xPOWER DC |
|
|
Operation System |
Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
|
LCD panel |
|
|
Panel size |
12" |
|
Resolution |
1024*768 |
|
Aspect ratio |
4:3 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
400 nits, (1000 nits sunlight readable optional) |
|
Response time |
5ms |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
5 wire resistive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
90% |
|
Surface Hardness |
3H |
|
Working Life |
>35 million times |
|
Touch options |
(capacitive touch, IR touch optional) |
|
Power Supply |
|
|
External Power Supply |
AC 100-240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤45W |
|
Enclosure |
|
|
Material |
stainless steel |
|
Color |
Silver |
|
VESA mounting |
100x100mm |
|
IP grade |
Full IP67 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage: -20 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Net weight |
5.5kg |
|
Gross weight |
7kg |
|
Product Dimension |
30.64x23.64x6.5cm |
|
Packing size |
43x38x18cm |
|
Accessories |

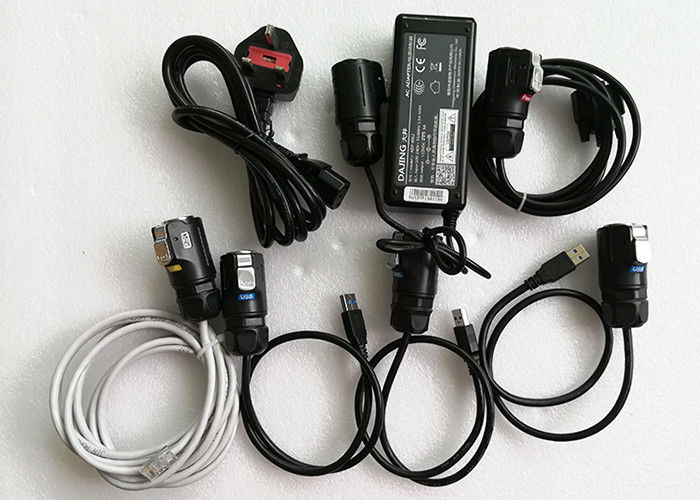

Power adapter, power cord,waterproof RS232/LAN/USB cable |
|
Other |
|
|
Mounting (options) |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificate |
CE, FCC, RoHS |
Pictures
Applications
Food processing machine
Biotech
Car Washing kiosk
Chemical industry
Phaemaceutical
marine navigation systems
Food & Baverage industry
Mining
Traffic Control System
Waste Water Management
Drawing
