Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SC101A
Contact Us

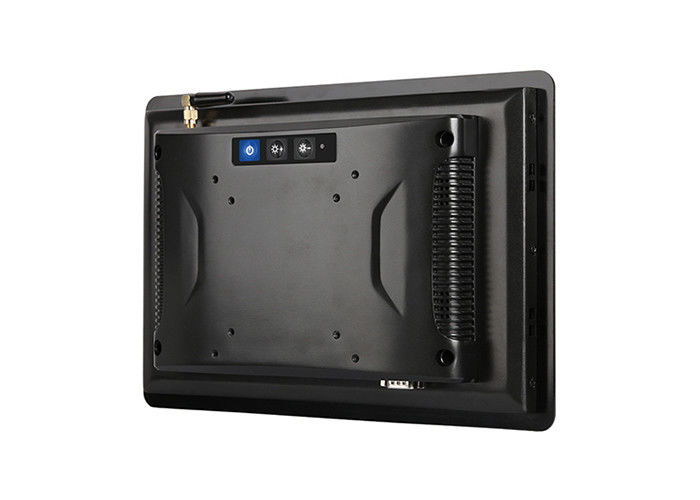

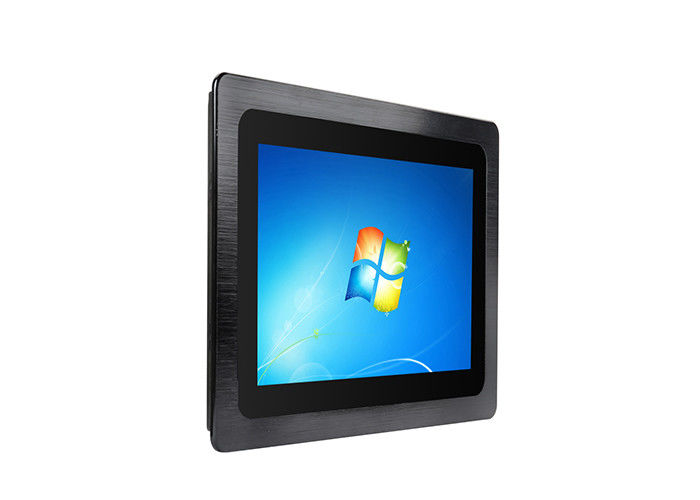

10.1 Inch 3MM Flat Panel Full View Angle Android Industrial Tablet Panel PC
Features
1. Front panel IP65 Waterproof, anti-EMI, crrosion resistance, excellent performance of heat dissipation.
2. Android 4.4 Operating system
3. Full view angle
4. 10 point Capacitive touch screen
5. 3G, 4G, Webcam, RFID reader etc(Optional)
Specification
| Model: SC101A | |
| PC | |
| CPU | A83T, Cortex-A7, eight core, 2GHz |
| Memory | 2GB DDR3 |
| Storage | 8GB EMMC |
| Decoding Resolution | Support 1080P |
| Operation System | Android 4.4 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G, TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2xUSB ( up to 5 ) |
| COM | 1xCOM |
| LAN | 1xRJ45, 10M/100M adaptive ethernet |
| HDMI | 1xHDMI , support 1080p |
| DC | 1xDC |
| Card Slot | 1xSD |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 400 cd/m² |
| Response time | 5ms |
| Contrast ratio | 800:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤60W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -10°C to 60°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 5-85% (non-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 3 kg |
| Gross weight | 3.5 kg |
| Product dimension | 29.36x19.36x4.85 cm |
| Packing size | 43x38x18 cm |
| Accessories | Power adapter, embedded screws, warranty card, user manual |
| Other | |
| Mounting way | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Customization | 3G, 4G, Webcam, RFID reader etc |
| Warranty | 1 year warranty |
Application
Security monitoring
Face recognition system
Control cabinet technology
Access control attendance
Smart Lockers parcel locker
Intelligent photo album classification
Self-service medical ticketing machine
Automatic medical film taking machine
Intelligent photo album classification
