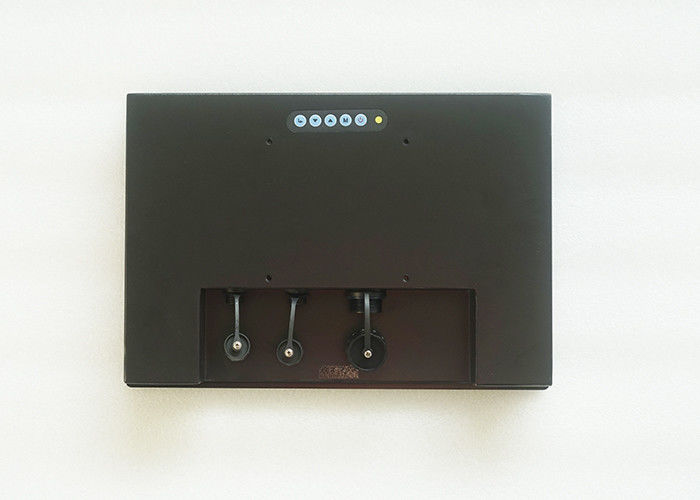

Waterproof Touch Screen Monitor IP67 Widescreen 12" LCD For Marine Navigation
Features
12 inch Industrial grade LCD panel, wide viewing angle, high nits, true color
Resolution 1280*800 Widescreen 16:10
400 nits brightness (1000nits optional)
Adopt 5 wire resistive touch, stable, durable, anti-interference.
Full IP67 waterproof, Sealed I/O with cable set included.
Working temperature -20°C~70°C
High performance mainboard, 7x24 continuous operation
Specifications
|
Model:SL12W |
|
|
LCD panel |
|
|
Panel size |
12" |
|
Resolution |
1280*800 |
|
Aspect ratio |
16:10 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
400 cd/m2 (1000 cd/m2 sunlight readable optional) |
|
Contrast ratio |
700:1 |
|
View angle |
80°/80°/80°/60° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
5 wire resistive touch |
|
Touch Interface |
USB (RS232 optional) |
|
Touch response time |
<8ms |
|
Luminousness |
75-85% |
|
Surface Hardness |
3H |
|
Working Life |
>35 million times |
|
Touch options |
( PCAP touch optional) |
|
Singal Ports |
|
|
HDMI |
1xHDMI |
|
VGA |
optional |
|
DVI |
optional |
|
Audio in/out |
optional |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support languages |
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
|
Support OS |
Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
|
Power Supply |
|
|
External Power Supply |
AC 100-240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤35W |
|
Enclosure |
|
|
Material |
aluminium alloy front bezel + High strength cold rolled steel back case |
|
Color |
Black, white, Silver, color can be customized |
|
VESA mounting |
100x100 mm |
|
IP-grade |
Full IP67 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -20 to 70°C, storage: -30 to 80°C |
|
Relative humidity |
operating: 10% to 90%, storage: 5% to 90% |
|
Packing Details |
|
|
Net weight |
3kg |
|
Gross weight |
4.2kg |
|
Product Dimension |
32.3x22.5x5.45cm |
|
Packing size |
47x38x20 cm |
|
Accessories |
Power adapter, waterproof HDMI cable, USB cable |
|
Other |
|
|
Mounting (options) |
1) wall brackets for wall-mounting, VESA 100×100 mm |
|
2) stable metal holder to support the monitor |
|
|
Warranty |
1 year warranty |
Applications
Extreme harsh environments
Outdoor vehicle advertising
Agricultural industry
Car wash pay station
Food & Beverage Processing Instrument
Sailing boat
