Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor

Place of Origin Shenzhen,China
Brand Name Sihovision
Certification CE, FCC, RoHS
Model Number SL12
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details 1PC/Carton, Weight: 4.2kgs, Carton size: 33*34*10cm
Delivery Time 5-10 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, Paypal, MoneyGram
Supply Ability 5000 Pieces Per Month
Product Details
Product Name Full IP67 Waterproof Monitor Type Open Frame High Brightness Screen 1000 Nits Lcd Monitor Display
Brightness (cd/m²) 1000nits, Sunlight Readable Resolution 1280*800 (16:10)
Widescreen Yes Viewing Angle 85°/85°/85°/85°(Typ.)(CR≥10)
Touchscreen Type 5 Wire Resistive Touch IP Grade Fully IP67 Waterproof
Panel Type TFT Temperature Range Operating: -20 To 70°C, Storage: -30 To 80°C.
Application Embedded/desktop/wall Mount Warranty 1 Year
High Light

sunlight readable display

,

high brightness display

Leave a Message
Product Description

Raspberry pi Suport High Brightness 1000 Nits Full IP67 waterproof monitor For Outdoor Application



Features

  • Material: aluminium alloy front bezel + High strength cold rolled steel back case

  • 12 inch industrial LCD panel, Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.

  • High brightness, 1000 nits sunlight readable

  • Adopt 5 wire resistive touch, stable, durable, anti-interference.

  • IP Grade: Full IP67 waterproof.

  • Interface: HDMI+ USB for touch, Sealed I/O with waterproof cable set included.

  • High performance mainboard, 7x24 continuous operation

  • Support  raspberry pi



Specifications

Model:SL12W

LCD panel

Panel size

12"

Resolution

1280*800

Aspect ratio

16:10

Support Color

16.7M colors

Brightness (cd/m²)

1000 nits, sunlight readable

Contrast ratio

700:1

View angle

80°/80°/80°/60° (R/L/U/D)

Touch panel

Touchscreen Type

5 wire resistive touch

Touch Interface

USB (RS232 optional)

Touch response time

<8ms

Luminousness

75-85%

Surface Hardness

3H

Working Life

>35 million times

Touch options

( PCAP touch optional)

Singal Ports

HDMI

1xHDMI

VGA

optional

DVI

optional

Audio in/out

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position, language select etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect.

Power Supply

External Power Supply

AC 100-240V

Working voltage

DC 12V

Power consumption

≤35W

Enclosure

Material

aluminium alloy front bezel + High strength cold rolled steel back case

Color

Black, white, Silver, color can be customized

VESA mounting

100x100 mm

IP-grade

Full IP67 waterproof

Operating Environment

Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative humidity

operating: 10% to 90%, storage: 5% to 90%

Packing Details

Net weight

3kg

Gross weight

4.2kg

Product Dimension

32.3x22.5x5.45cm

Packing size

47x38x20 cm

Accessories

Power adapter, waterproof HDMI cable, USB cable

Other

Mounting (options)

1) wall brackets for wall-mounting, VESA 100×100 mm

2) stable metal holder to support the monitor

Warranty

1 year warranty



Applications

  • outdoor terminal

  • livestock equipment

  • control cabinet

  • food plant project

  • manufacturing processes

  • Marine navigation system



Pictures

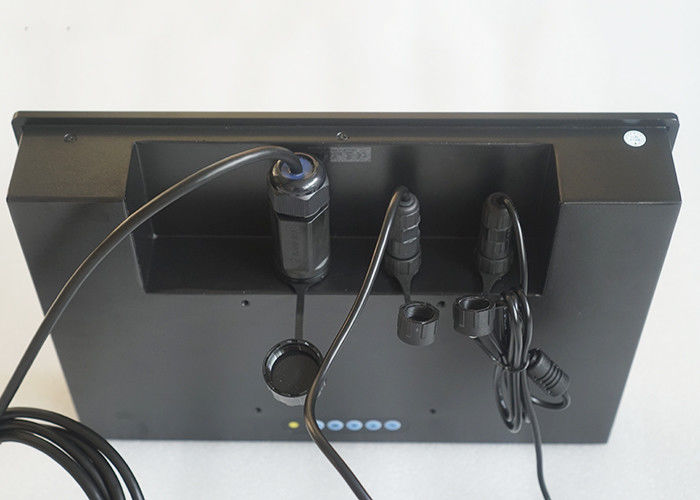

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor 0

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor 1

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor 2



Drawing

Raspberry Pi Suport High Brightness LCD Display Full IP67 Waterproof Monitor Outdoor 3
