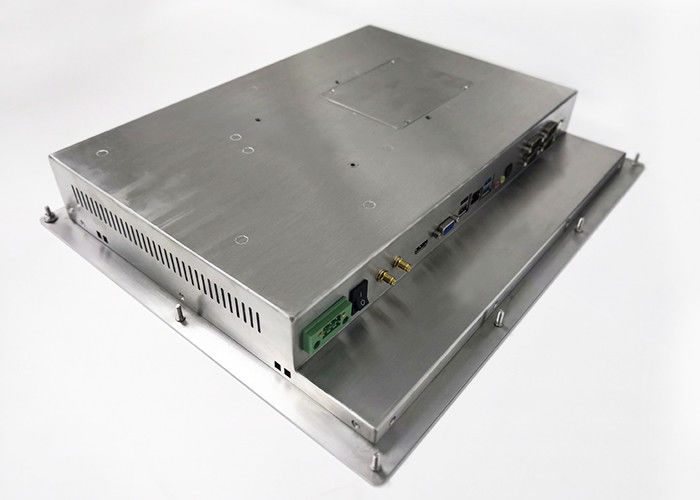

15 Inch Front IP65 Waterproof Stainless Steel Touch Screen Rugged Panel PC
Features
This 15" industrial panel PC is made of complete stainless steel, which is anti-rust and anti-corrosion. With 3mm thin fron bezel, you can embed it into your equipment. It's front panel is IP65 waterproof. We adopts EETI touch solution, which means you can touch it with wet fingers. It's the best choice for wet locations such food processing line, car washing shop, agricultural industry, etc.
Specification
|
Model:SC15 |
|
|
PC |
|
|
CPU |
Intel® Celeron J1900, quad core, 2.0GHz, fanless |
|
Chipset |
Intel ValleyView SSA-CUnit |
|
Memory |
2GB DDR3 (4GB, 8GB optional) |
|
Hard Drive Capacity |
32GB SSD |
|
Hard Drive Optional |
SSD: 64Gb, 128GB, 256GB |
|
HDD: 500GB, 1TB |
|
|
Graphics |
CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
|
Audio |
Realtek ALC662, High Definition Audio (HD), Line in, Line out |
|
Network |
1xRealtek RTL 8111E Gigabit Ethernet controller |
|
Wireless Network |
WIFI Bluetooth optional |
|
I/O Interface |
4xUSB, 4xCOM, 1xRJ45, 1xVGA, 1xHDMI, 1x Power DC |
|
Operation System |
Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
|
LCD panel |
|
|
Panel size |
15" |
|
Resolution |
1024*768 |
|
Aspect ratio |
4:3 |
|
Support Color |
16.7M colors |
|
Brightness (cd/m²) |
400 nits (1000 nits sunlight readable optional) |
|
Response time |
5ms |
|
Contrast ratio |
1000:1 |
|
View angle |
80°/80°/80°/80° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
5 wire resistive touch |
|
Touch Interface |
USB |
|
Touch response time |
<8ms |
|
Luminousness |
90% |
|
Surface Hardness |
3H |
|
Working Life |
>35 million times |
|
Touch options |
(capacitive touch, IR touch optional) |
|
Power Supply |
|
|
External Power Supply |
AC 100-240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤45W |
|
Enclosure |
|
|
Material |
stainless steel |
|
Color |
Silver |
|
VESA mounting |
100x100mm |
|
IP grade |
Front IP65 waterproof |
|
Operating Environment |
|
|
Temperature Range |
operating: -20 to 70°C, storage: -20 to 80°C |
|
Relative humidity |
5%~95% @ 40° C, non-condensing |
|
Vibration |
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
Packing Details |
|
|
Net weight |
5.5kg |
|
Gross weight |
7kg |
|
Product Dimension |
37.9x30x6.3cm |
|
Packing size |
47x43x18cm |
|
Accessories |
Power adapter, power cord, embedded screws |
|
Other |
|
|
Mounting (options) |
embedded mounting screws |
|
wall mounting brackets (optional) |
|
|
desk stand holder (optional) |
|
|
Warranty |
1 year warranty |
|
Certificate |
CE, FCC, RoHS |
Applications
Food processing machine
Car Washing management system
Chemical industry
Sailing boat
Phaemaceutical
Food & Baverage industry
Outdoor vehicle
Mining
Traffic Control System
Harsh environment
