Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SC156
Contact Us

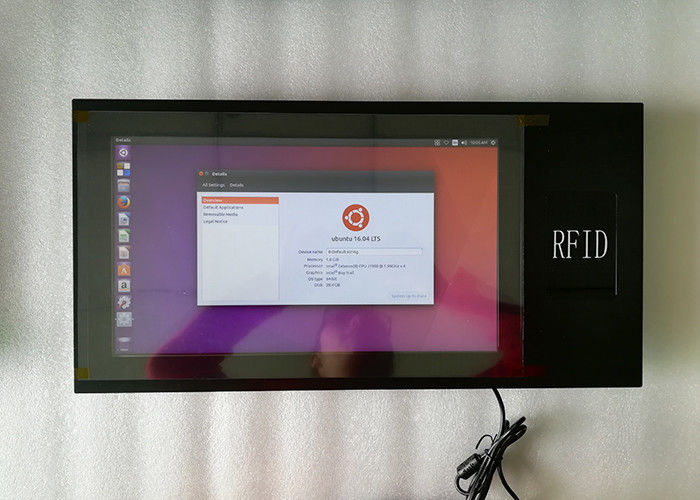

15.6 Inch 10MM Industrial Capacitive Touch Panel PC With 3G And RFID Module
Features
1. Aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response, cover with 2mm tempered glass for vandalproof.
4. High performance motherboard, 7x24 continuous operation.
5. Built in RFID reader, 3G module.
6. With 4 RS232, 2 LAN.
7. Support wall mounting, embedded mounting, desk stand mouting etc.
Specification
| Model:SC156 | |
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3xUSB 2.0, 1xUSB 3.0, 4xCOM RS232, 2xRJ45 |
| 1xVGA/HDMI/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 15.6" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 5kg |
| Gross weight | 6.5kg |
| Product Dimension | 51x25.9x5.87cm |
| Packing size | 63x45x18cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Customization | Built in RFID reader |
| 3G module | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Drawing
Application
Chicken Slaughter
Boat installation
Food Manufacturing
Voting machine
Control Cabinet
Golfball dispensing machine
Remote authentication
Parking lot self-service payment machine
