Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SC15WB

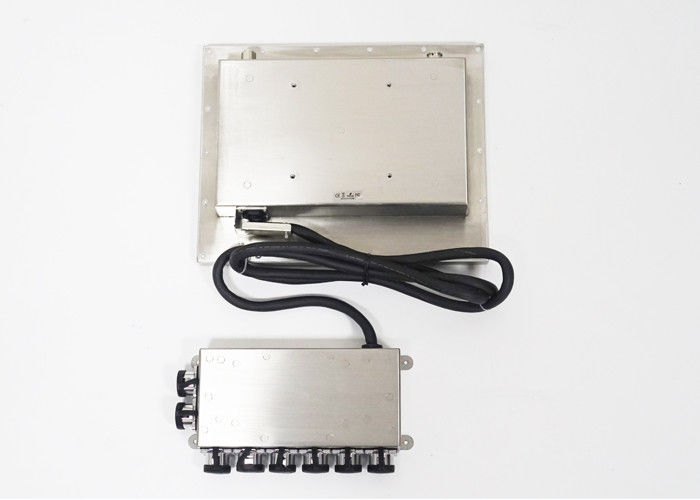

A Breakout Box Connect 15 Inch Stainless Steel IP65 Waterproof Panel PC By 2M Cable
Features
1. IP65 sealed 304 stainless steel enclosure.
2. Adopt 10 points PCAP touch panel , high sensitive and fast-response .
3. High performance motherboard, 7x24 continuous operation.
4. Full sealed and fanless design, full IP65 waterproof , 1000 nits,sunlight readable.
5 A breakout box with only one cable connected to PC, cable is 2m, connectors on the box
6. Waterproof air value
Specification
| Model: SC15WB | |
| PC | |
| CPU | Intel® core i3-4010u,dual core,1.7GHz |
| Memory | 4G DDR3, (2G ,8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G,128GB,256GB |
| HDD: 500GB,1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 4*USB+2*LAN+1*RS232 (on the break out box) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable (400 nits optional) |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80/80/80/80 (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch Interface | USB (RS232 optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | 12V (9-36V wide voltage optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel case |
| Color | Silver |
| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 7.5KG |
| Gross weight | 8.5KG |
| Product Dimension | TBD |
| Packing size | 62×47×17 cm |
| Accessories | Power adapter,waterproof RS232/LAN/USB cable,power cord |
| Other | |
| Mounting (options) | 1) Provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 12 months warranty |
Application
Seaside
Boat installation
Meat Factory
Slaughter Chicken
Intelligent photo album classification
Self-service medical ticketing machine
Automatic medical film taking machine
