10MM Widescreen Industrial Android Tablet Panel PC RK3399 12 Inch With 5 Mega Pixel Camera
Product Name | 12 Inch Industrial Android Panel PC | CPU | RK3399, Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU, 2.0GHz |
---|---|---|---|
Operating System | Android 7.1 | Resolution | 1280*800 |
View Angle | 80°/80°/80°/80° (R/L/U/D) | Front Bezel | 10MM Flat Panel |
Camera | 5 Mega-pixel Camera | Warranty | 12months |
High Light | industrial tablet pc,rugged android tablet |
RK3399 12 Inch 10MM Widescreen Industrial Android Tablet Panel PC With 5 mega-pixel Camera
Features
1. Robust and durable aluminium alloy enclosure, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 point capacitive touch screen, high precision, durable, anti-interference
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting, embedded and rackmount etc. apply to a wide range of industrial application.
6. With wifi, bluetooth.
7. With 5 mega-pixel camera on front panel
Specification
Model: SC121A Widescreen | |
PC | |
CPU | RK3399, Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU, 2.0GHz |
Memory | 2GB DDR3 |
Storage | 16GB EMMC |
Decoding Resolution | Support 1080P |
Operation System | Android 7.1 |
Play Modes | Support timing, loop and spots etc. play modes |
Network Support | RJ45, WIFI, 3G, 4G, TD-LTE (optional) |
Image Format | JPEG/BMP/GIF/PNG |
Video Format | WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4 |
Audio Format | MP3, WMA, AAC, etc. |
RTC Real Time Clock | YES |

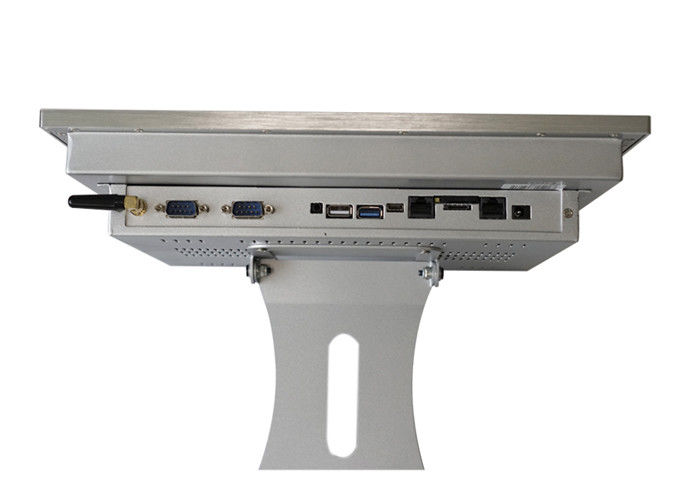

I/O Interfaces | |
USB | 1xUSB2.0 , 1×USD3.0 , 1×USB Type-C |
COM | 2xCOM RS232 |
LAN | 2xRJ45, 100M/1000M adaptive ethernet |
DC | 1xDC |
Card Slot | 1xTF , 1×SIM |
Audio | 1x Audio in/out |
LCD panel | |
Panel size | 12" |
Resolution | 1280*800 |
Aspect ratio | 16:10 |
Support Color | 16.7M colors |
Brightness | 400 cd/m² |
Response time | 5ms |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 point capacitive touch |
Touch response time | <2ms |
Luminousness | 90% |
Surface Hardness | 7H |
Working Life | >50 million times |
Power Supply | |
External Power Supply | AC 100 - 240V |
Working voltage | DC 12V |
Power consumption | ≤60W |
Enclosure | |
Appearance | Flat panel |
Material | Aluminum alloy |
Color | Black, Silver |
VESA mounting | 75x75mm/100x100mm |
IP grade | Front IP65 waterproof |
Operating Environment | |
Working temperature | -10°C to 60°C |
Storage temperature | -20°C to 60°C |
Relative humidity | 5-85% (npn-condensing) |
Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms period |
Packing Details | |
Net weight | 4 kg |
Gross weight | 5 kg |
Product dimension | 33x22.73x5.45 cm |
Packing size | 43x38x18 cm |
Accessories | Power adapter, embedded screws, warranty card, user manual |
Other | |
Mounting way | Embedded mounting screws |
Wall mounting brackets (optional) | |
Desk stand holder (optional) | |
Customization (optional) | 3G, 4G, Webcam, RFID reader etc. optional |
Warranty | 1 year warranty |
Drawing
Application
The Robot
Vending machine
Medical imaging equipment
Calligraphy copy desk
Self-service ticket collector
Vehicle-mounted intelligent terminal
Pictures
