Place of Origin:
China(Mainland)
Brand Name:
SHINHO
Certification:
CE, FCC, RoHS
Model Number:
SL15W

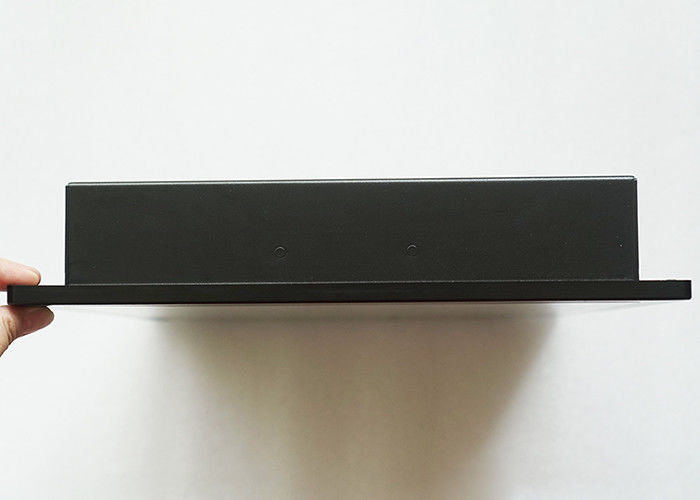

1500 Nits High Brightness 15 Inch IP67 Waterproof LCD Monitor with RCA and HDMI interface
Features
1. Robust and durable, all-metal enclosure, fully sealed IP67 waterproof. Sealed I/O with cable set included.
2. 15'' Industrial LCD panel, high brightness 1500 nits, sunlight readable. Cover with 2MM AG glass for anti glare and vandalproof.
3. Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
4. Interfaces: 1* IP67 waterproof DC in +1* IP67 waterproof Video Composite RCA + 1*IP67 HDMI
5. High performance mainboard, 7x24 continuous operation.
Specification
| Model: SL15 | |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Singal Ports | |
| Video composite | 1x Video Composite RCA |
| HDMI | 1x HDMI |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | 25 W |
| Enclosure | |
| Material | Aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75mm / 100x100 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 90%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 4.1kgs |
| Gross weight | 5.1kgs |
| Product Dimension | 37.26x29.99x4.22cm |
| Packing size | 47x43x18 cm |
| Accessories | Power adapter, waterproof power cord, waterproof HDMI cable and video cable |
| Other | |
| Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100 mm |
| 2) Stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
Application
Fence
Seaside
Meat Factory
Boat navigation
Chicken Slaughter
Food Manufacturing
Golfball Dispensing Machine
Drawing
Pictures
