Military Grade Waterproof Lcd Monitor , IP67 Waterproof Touch Panel Monitor 19 Inch

Military Grade Waterproof Lcd Monitor , IP67 Waterproof Touch Panel Monitor 19 Inch

waterproof hdmi monitor

water resistant monitor

Place of Origin:

Shenzhen , China

Brand Name:



CE , FCC , RoHs

Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
19 Inch Military Grade LCD Monitor
IP Grade:
Full IP67
Panel Size:
19 Inch
Stainless Steel
Interface Type:
Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Payment Terms
T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Product Description

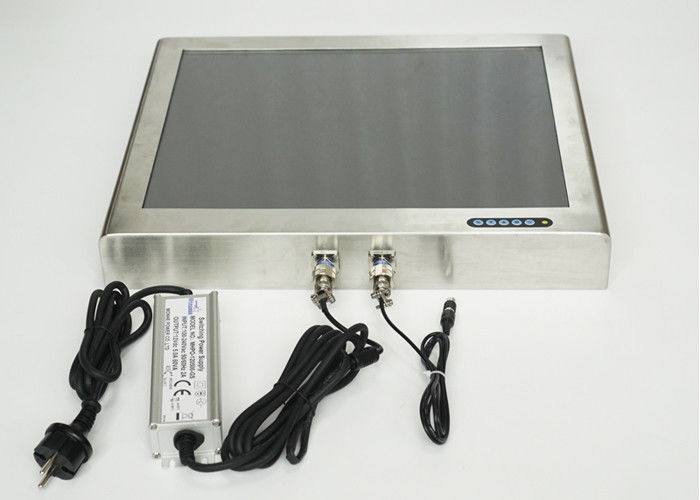

Fully IP67 Waterproof 19 Inch Military Grade LCD Monitor For Navy

1. Full IP67 sealed stainless steel enclosure.


2. Including Water-Proof Military DTL-38999 series iii connectors, Sealed I/O with cable set included.

3. The industrial LCD panel, wide viewing angle, true color.


4. Brightness up to 1000 nits, sunlight readable.


5. Covered with 3mm AF glass, anti-fogging, anti-fingerprint.

6. High-performance motherboard, 7x24 continuous operation.

7. Support jet washing.

Advantages of 19-inch Military Grade LCD Monitor
1. Working temperature is wide range: -30C to +85°C.
2. Sealed waterproof signal I/O can be customized, such as AV, BNC, HDMI, VGA or COM.
3. The buttons can be customized face down or M12 or direct type or located in the rear.


4. 1000 nits brightness, working well under direct sunlight and daylight readable.



In summary

Shinho's military waterproof monitor is the perfect rustproof solution for marine and navy, pharmaceutical processing, and clean room applications. Full flat touchscreen bezels prevent particles from collecting on the unit housing and growing bacteria. These rugged touchscreen monitors are built with industrial-grade components and making these units completely dustproof and waterproof.

Our designs the housing of its monitors to act as its own waterproof enclosure. The stainless steel housing of waterproof touchscreen monitors can withstand cleanings with harsh chemicals, which earns them an ingress protection rating.



LCD panel
Panel size 19"
Resolution 1280*1024
Aspect ratio 5: 4
Support Color 16.7M colors
Brightness (cd/m²) 1000 cd/m², sunlight readable
Contrast ratio 1000:1
View angle 85°/85°/80°/80° (R/L/U/D)
Customization Covered Anti-fogging glass
Signal Ports
AV Composite video (PAL & NTSC) Water-Proof Military DTL-38999 series iii connectors
VGA optional
DVI optional
HDMI optional
Audio in/out optional
OSD in the front bezel
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply AC 100 - 240V, 50-60Hz
Working voltage DC 12V Water-Proof Military DTL-38999 series iii connectors
Power consumption ≤35W
Material Stainless steel 304
Color Silver
VESA mounting 100x100mm
IP grade Full IP67
Operating Environment
Temperature Range operating: -30 to 85°C, storage: -30 to 85°C
Relative humidity operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight 8.35kg
Gross weight 10kg/pc/Carton, 21.5KG/2pcs/Carton
Product Dimension 44.6*37.4*6.0cm
Packing size 53*47*18cm/pc/Carton, 55*36*48CM/2pcs/Carton
Accessories IP67 waterproof Power adapter, waterproof AV cables.
Mounting VESA mounting
embedded mounting screws (optional)
desk stand holder (optional)
Warranty 3-years warranty
Certificates CE, FCC, RoHS

Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
